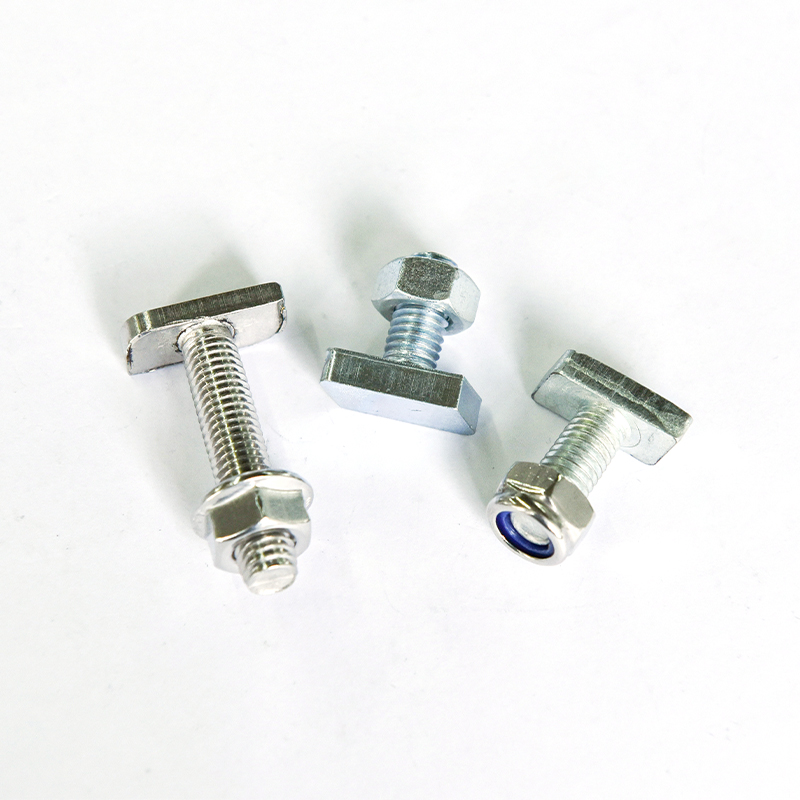

1. Flexible Positioning & Easy Installation

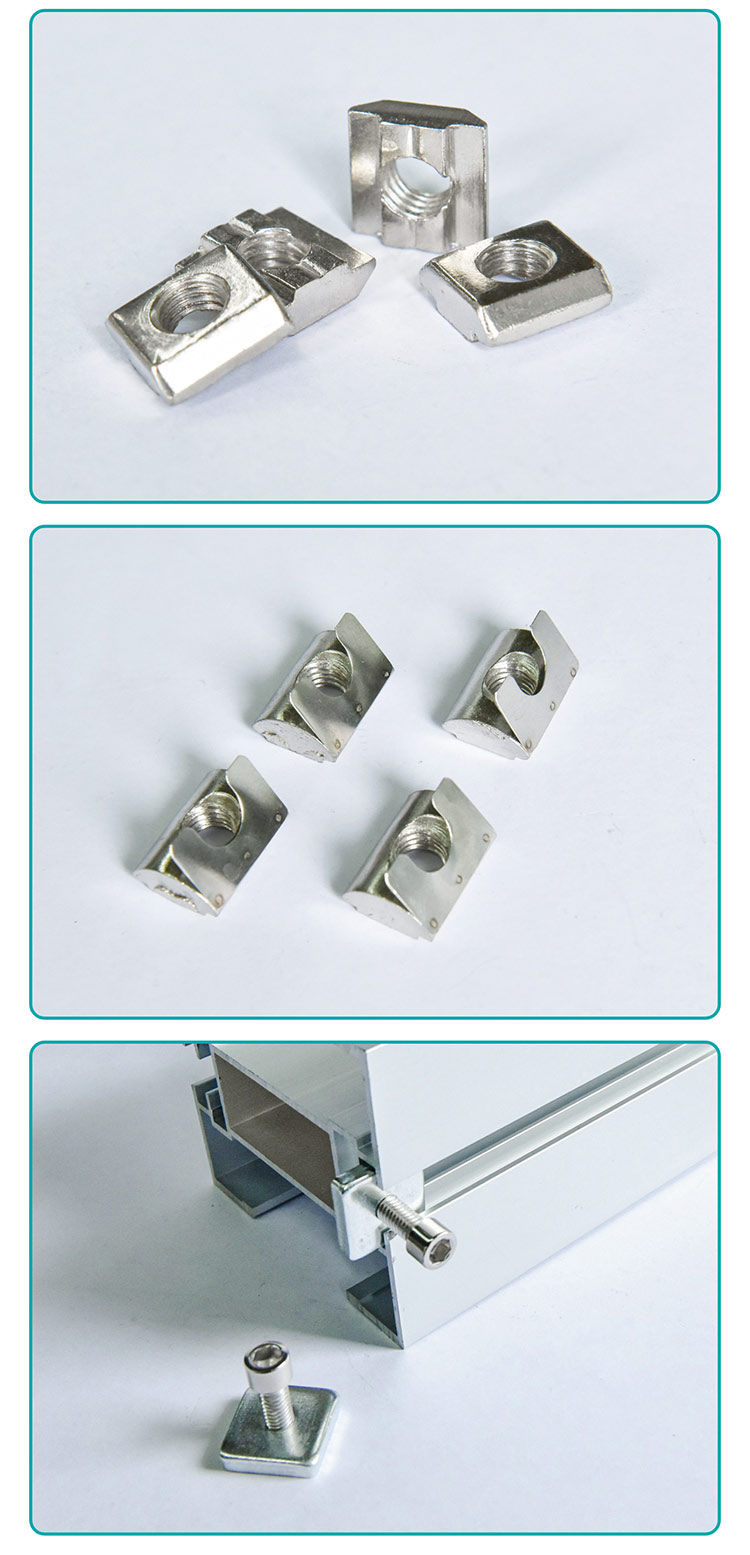

The T‑head design allows insertion into T‑slots at any location without needing to slide from the end of the profile. After insertion, a simple quarter‑turn locks the bolt in place, preventing rotation during tightening. This feature dramatically reduces assembly time compared to traditional slide‑in nuts, especially on long conveyor frames where accessing the slot end is difficult.
2. Secure & Vibration‑Resistant Connection
When torqued, the T‑head seats against the internal faces of the T‑slot, providing a strong, anti‑rotation grip. This ensures mounted components remain stable even under conveyor vibration or dynamic loads. Serrated or toothed variants are available for enhanced locking. The bolt’s thread engagement supports high clamping forces without stripping the aluminum profile groove.

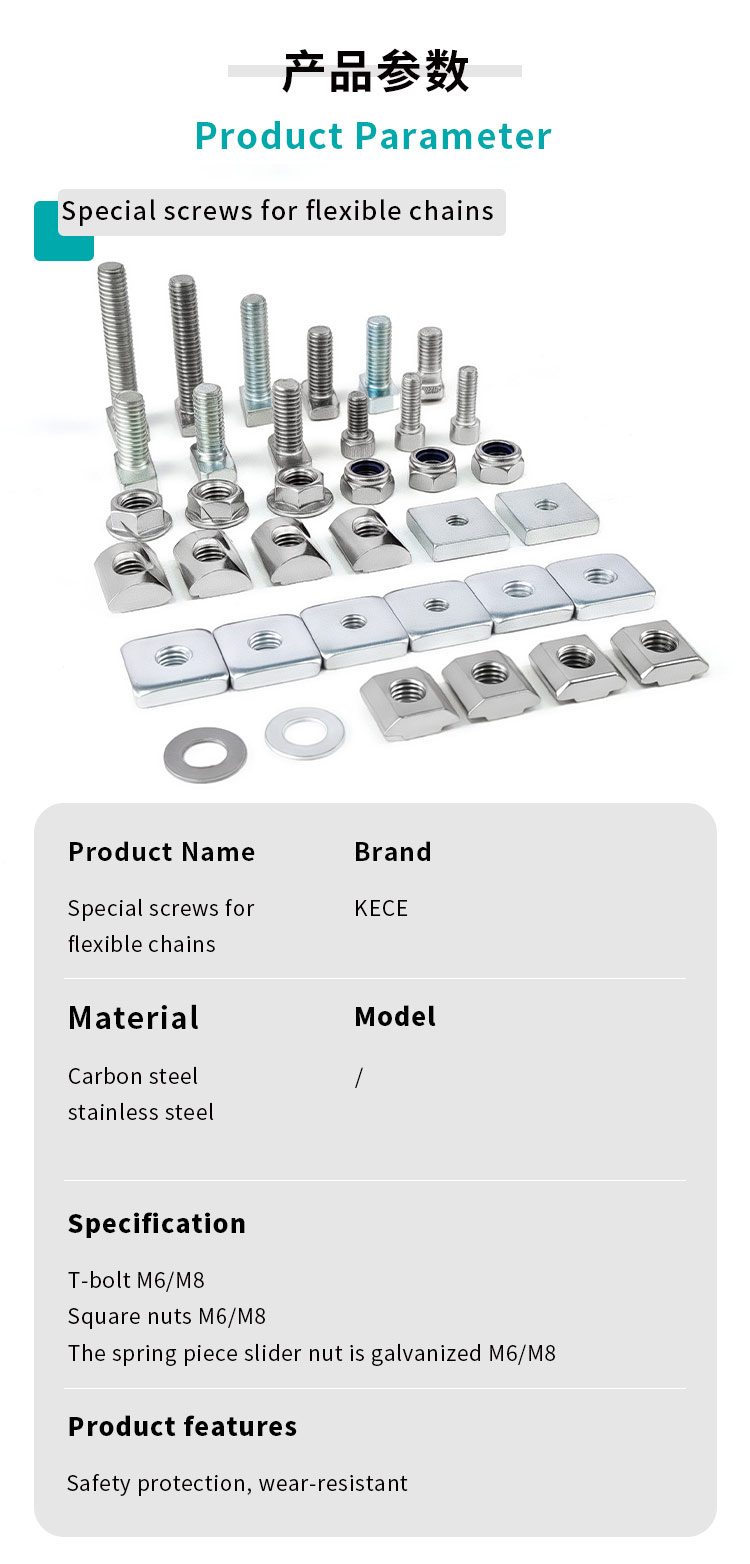

3. Multiple Materials & Finishes for Harsh Environments
Zinc‑plated carbon steel T‑slot bolts offer cost‑effective general purpose use. Stainless steel versions provide excellent corrosion resistance for washdown areas, food processing, pharmaceutical lines, and outdoor conveyors. For highly corrosive or chemical‑exposed environments, nylon‑coated or full stainless steel (SUS316) grades are recommended. All options maintain consistent thread precision and T‑head dimensional accuracy.
Product Uses

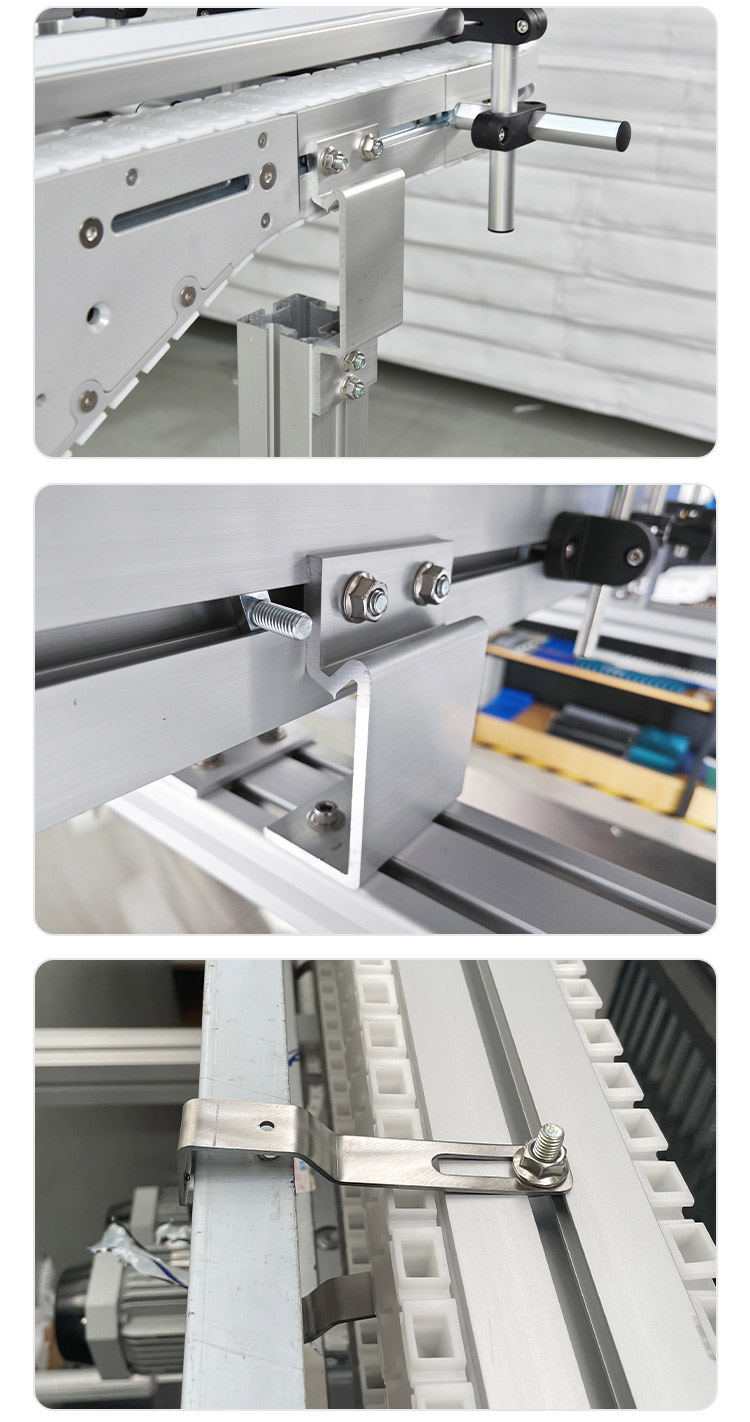

1. Conveyor Side Guide & Guard Mounting

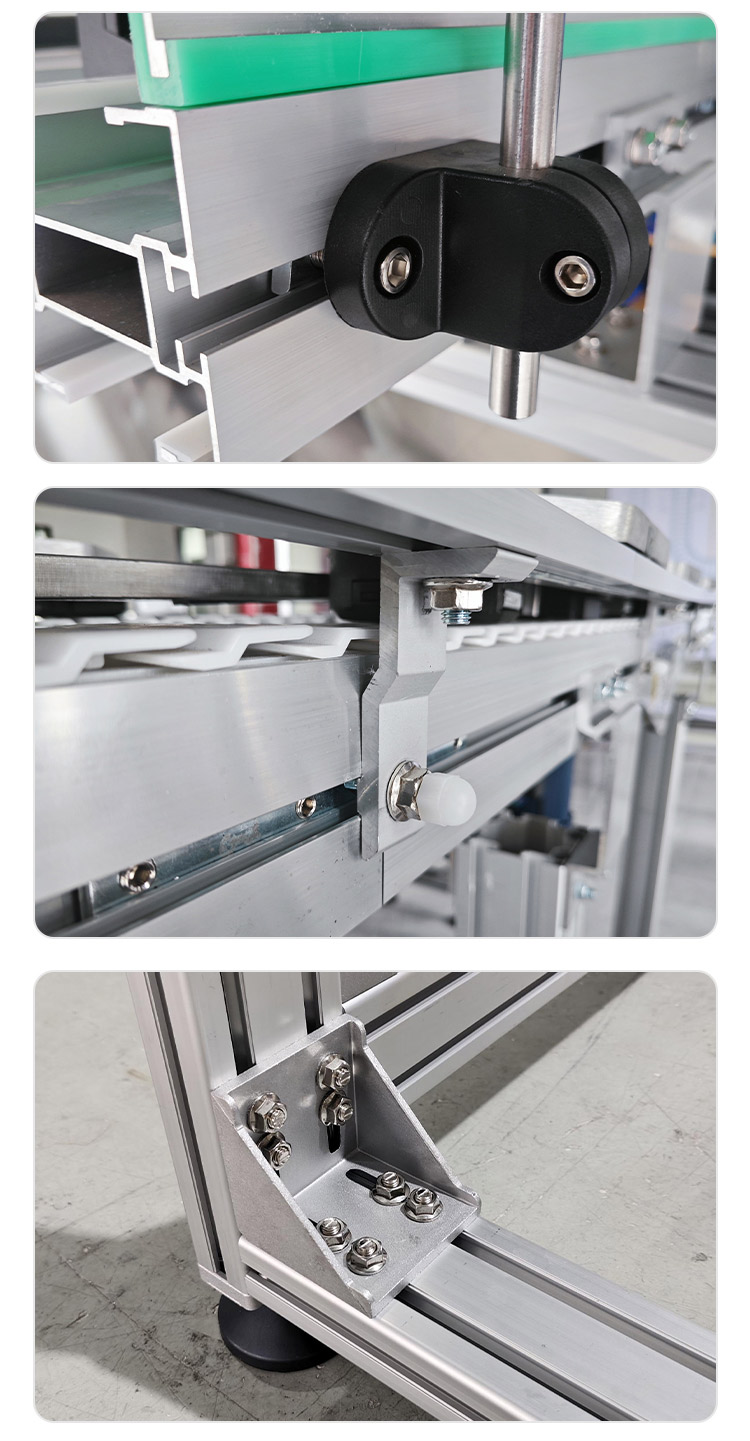

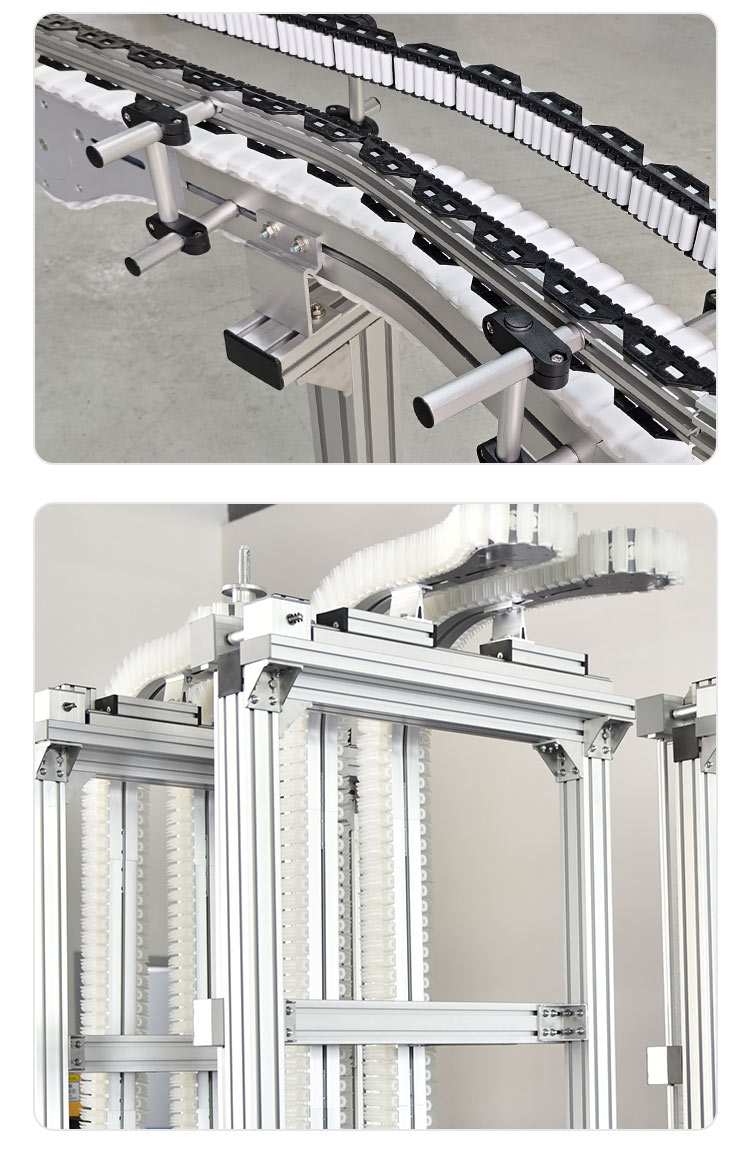

T‑slot bolts are widely used to attach side guide rails, wear strips, and protective covers to T‑slotted aluminum conveyor beams. By loosening the bolt, operators can quickly reposition guides for different product widths or replace worn components without drilling or welding. Stainless steel bolts are preferred in food and beverage lines requiring frequent washdown.
2. Sensor & Bracket Fixing on Assembly Lines

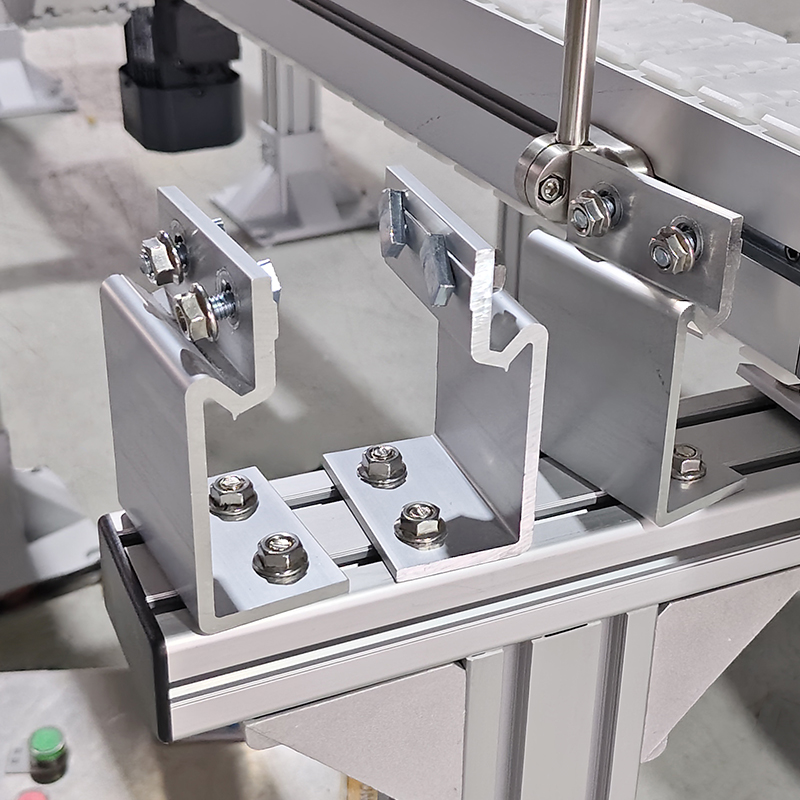

Automated production lines rely on T‑slot bolts to mount photoelectric sensors, proximity switches, and pneumatic valve brackets onto profile frames. The ability to slide the bolt along the T‑slot allows fine‑tuning of sensor positions for optimal detection. Reconfiguration between product changeovers takes minutes rather than hours.
3. Lean Manufacturing Workstations & Machine Guards
In assembly cells, ergonomic workstations, and machine guarding systems, T‑slot bolts connect crossbars, shelving, panel mounts, and hinged doors to extruded profile structures. Their reusable nature supports continuous layout improvements and rapid prototyping of custom fixtures. Combined with T‑nuts and corner brackets, they form a complete modular framing solution.
