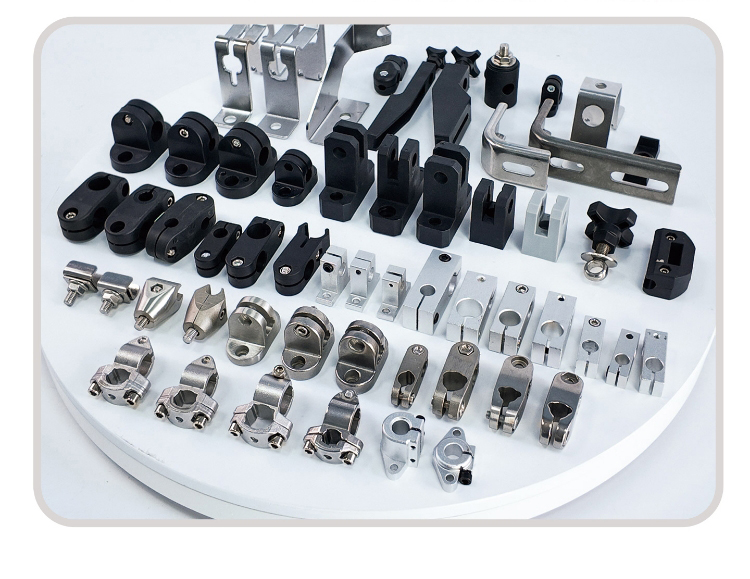

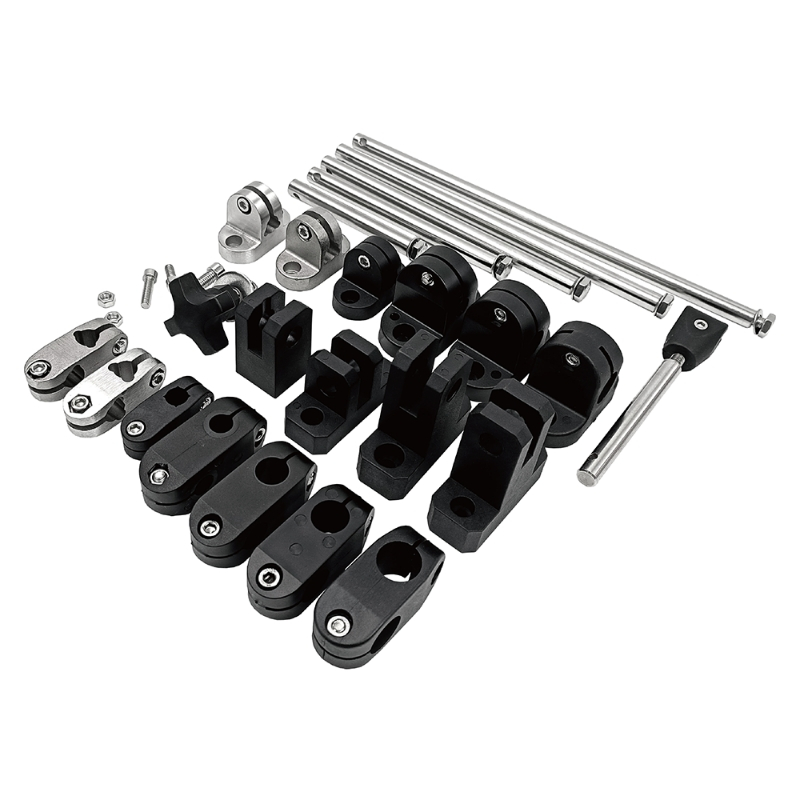

1. Versatile Shaft & Profile Fixing

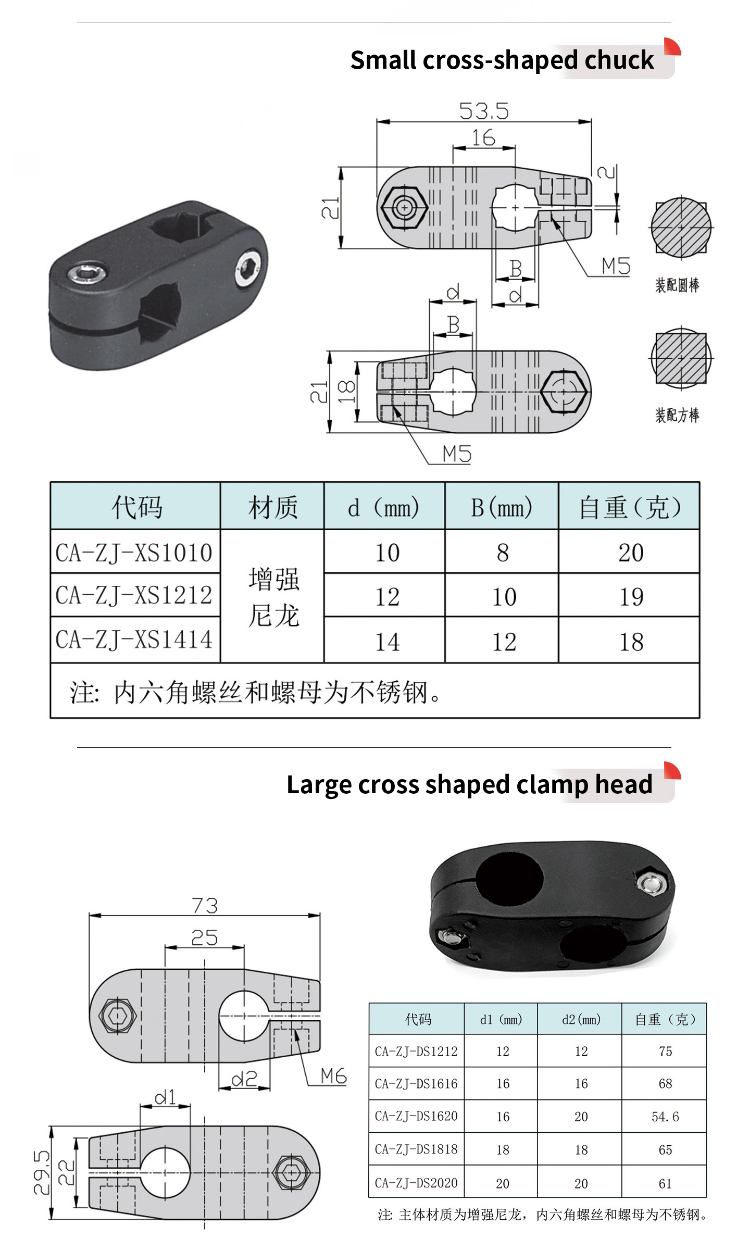

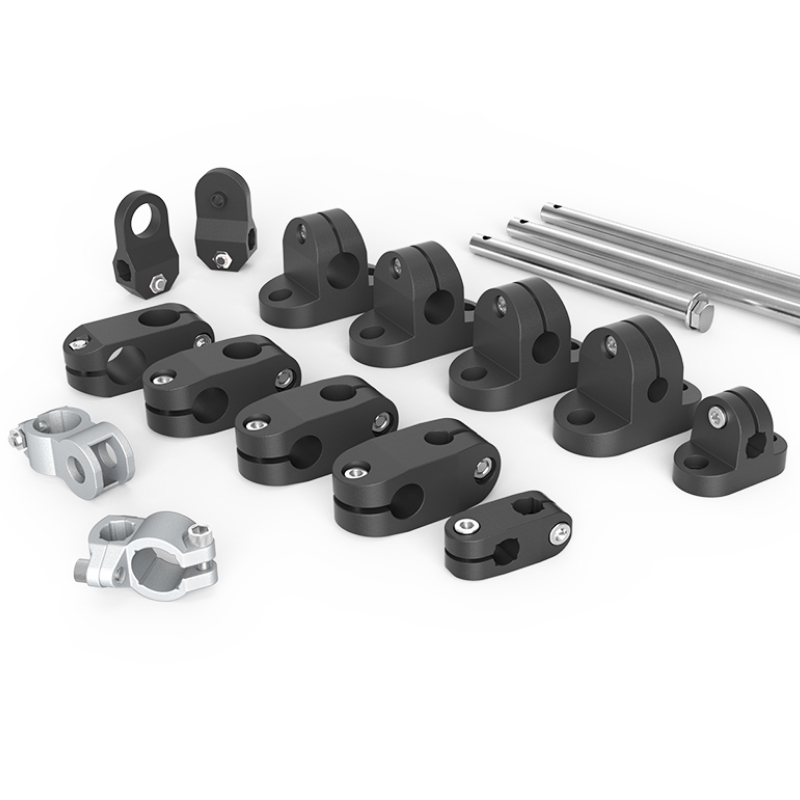

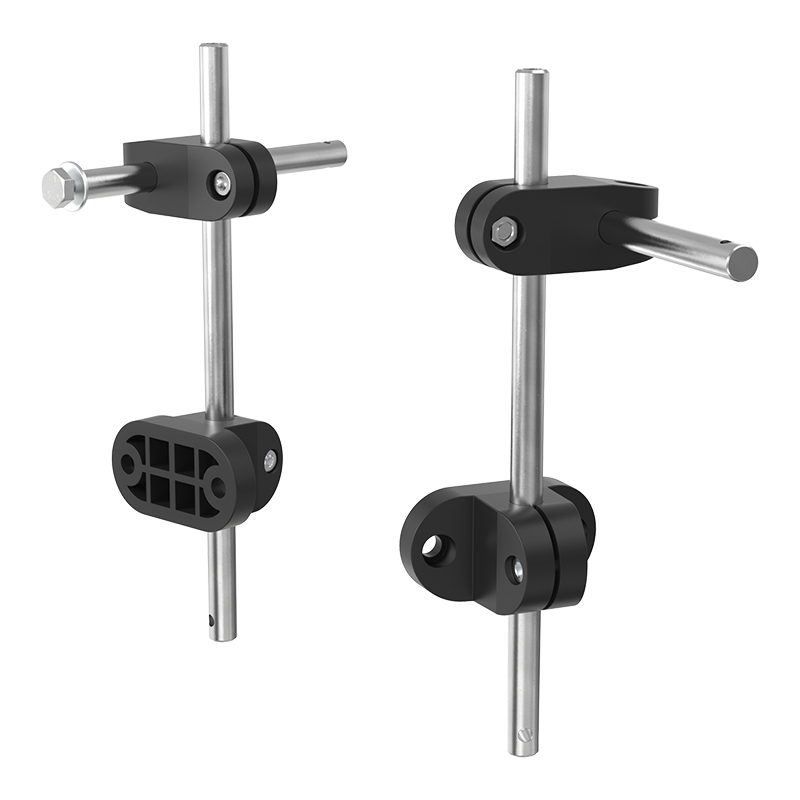

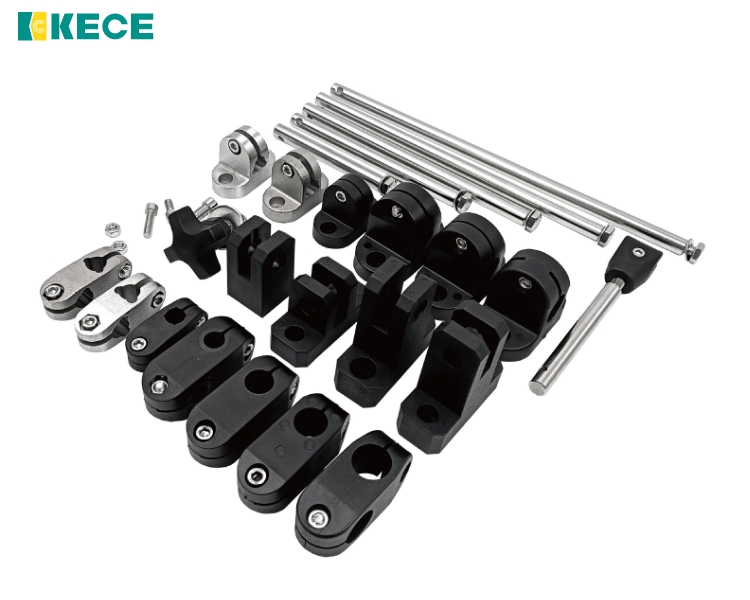

The T-Clamp and Cross Clamp enable reliable 90° connection of round or square shafts, guide rods, and aluminum profiles. They accommodate a wide range of diameters from 8mm to 30mm, with both same‑diameter and different‑diameter options. This versatility allows integrators to build customized conveyor side guides, sensor mounts, and support frames using standard modular components.

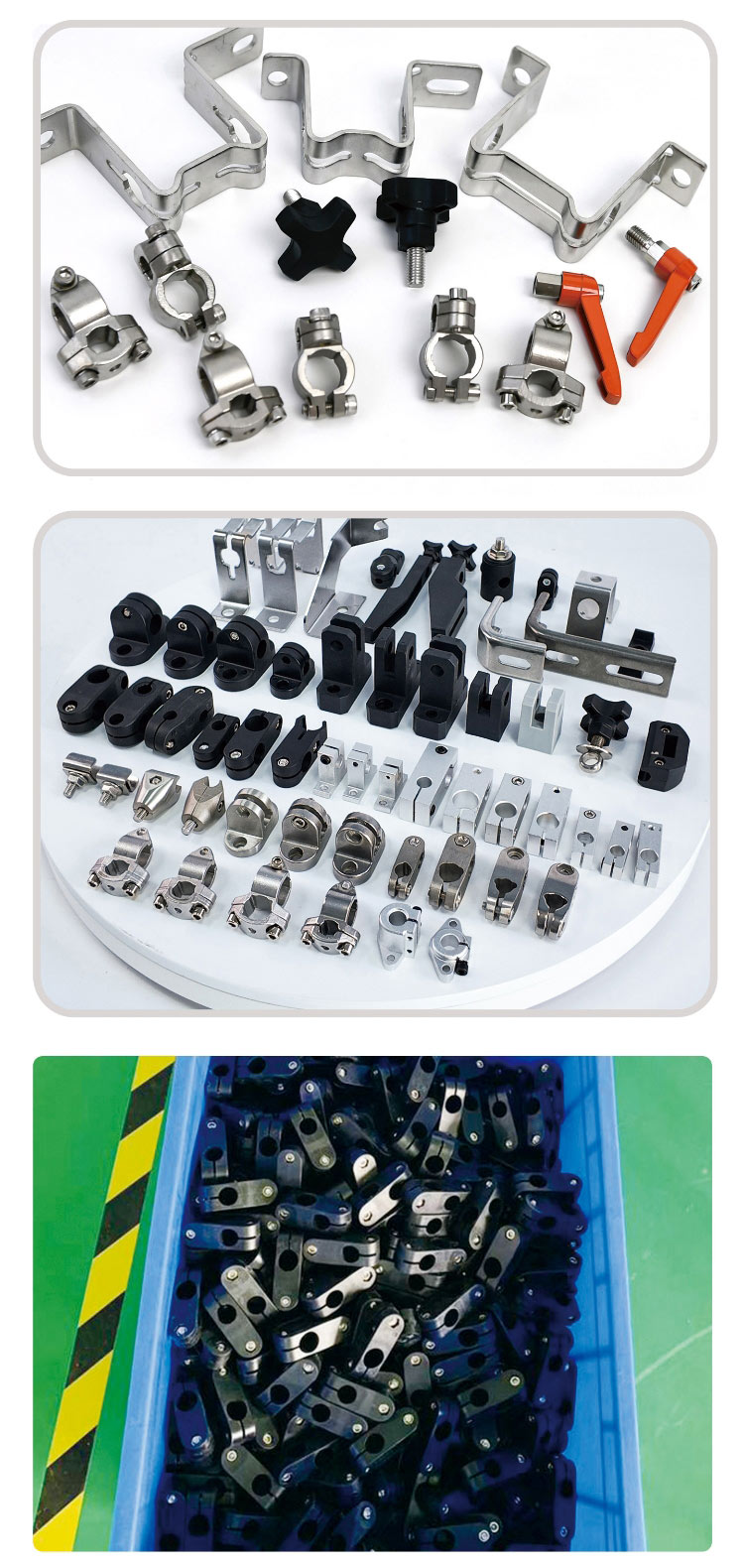

2. Multiple Material Options for Different Environments

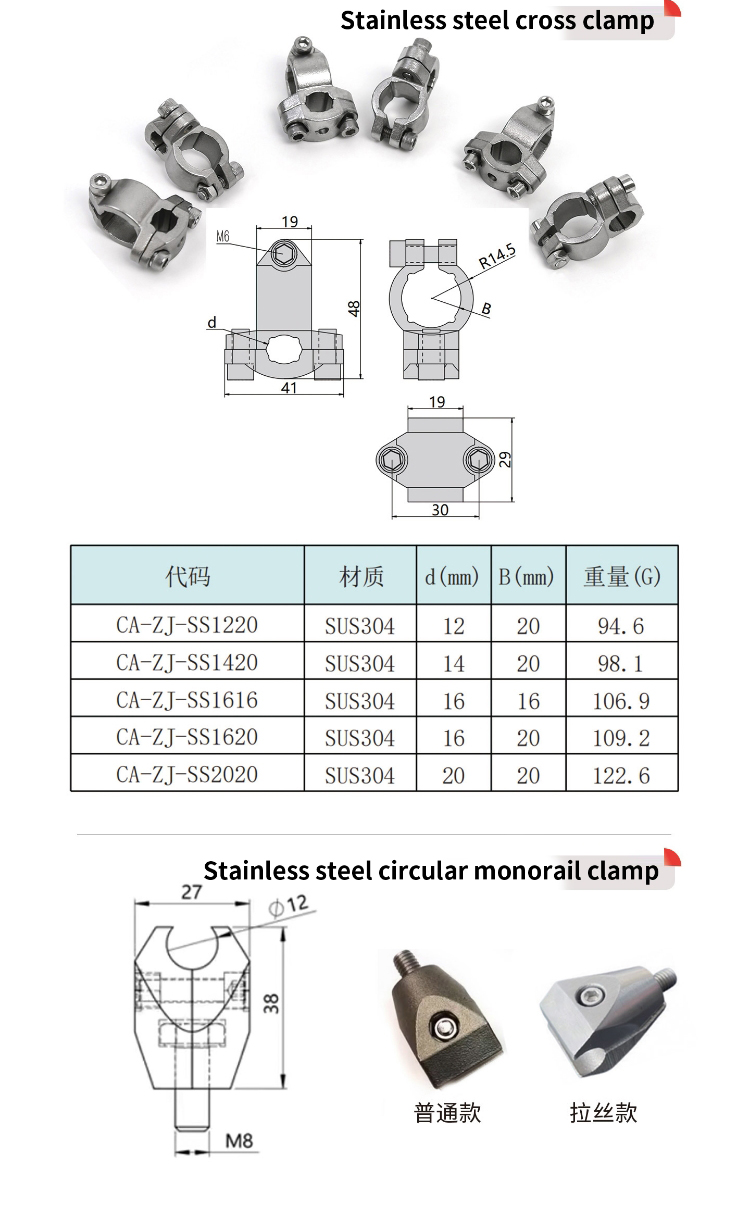

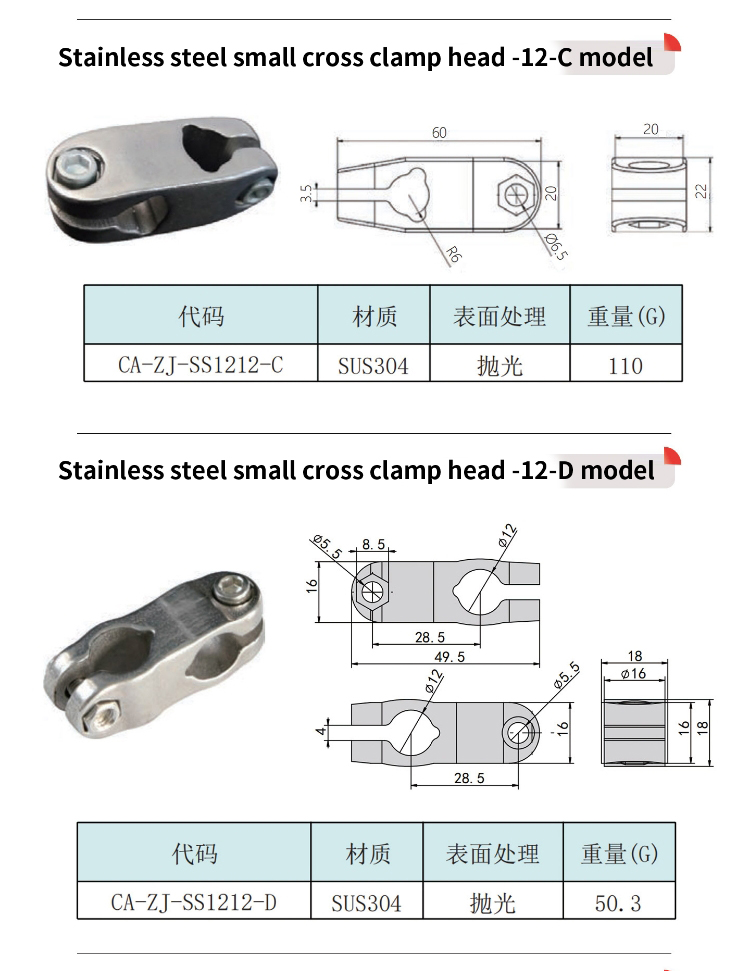

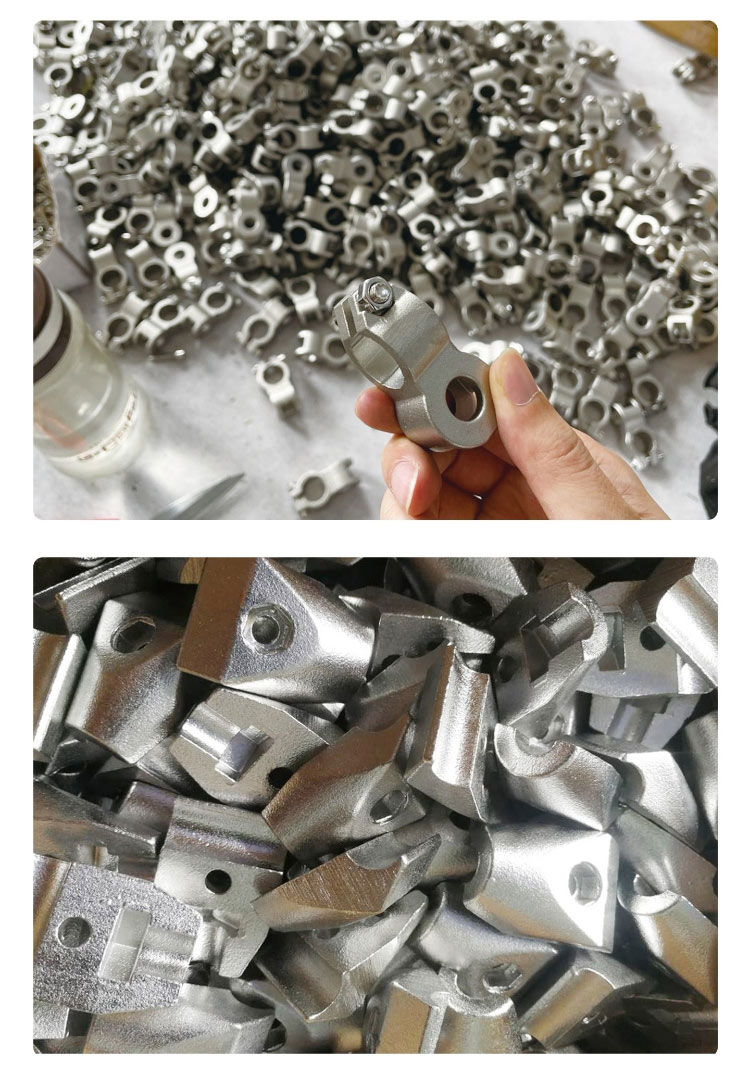

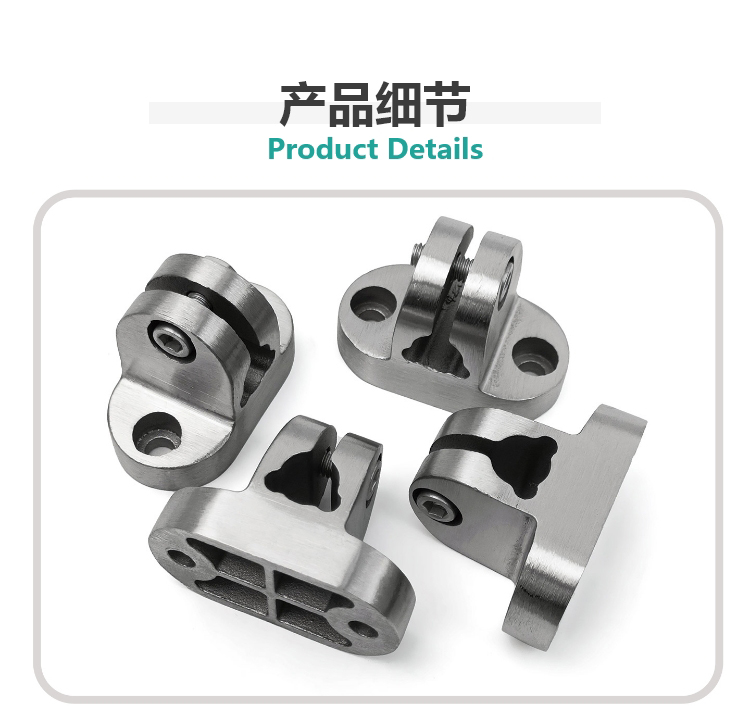

Nylon (PA6) clamps provide lightweight, non‑corrosive performance for general industrial use. Aluminum alloy versions combine low weight with good rigidity for medium‑duty applications. Stainless steel (SUS304) clamps offer superior corrosion resistance for washdown environments, food processing, and outdoor installations. All material choices feature smooth clamping surfaces that prevent scratching or marring of shafts.
3. Damage‑Free Clamping & Easy Reconfiguration
The split‑body clamping design uses socket head cap screws to provide uniform tightening pressure without marking or deforming shafts. This allows repeated assembly and disassembly while maintaining clamping force. The open structure enables post‑installation mounting onto existing conveyor frames without disassembling adjacent components, significantly reducing line changeover downtime.
Product Uses

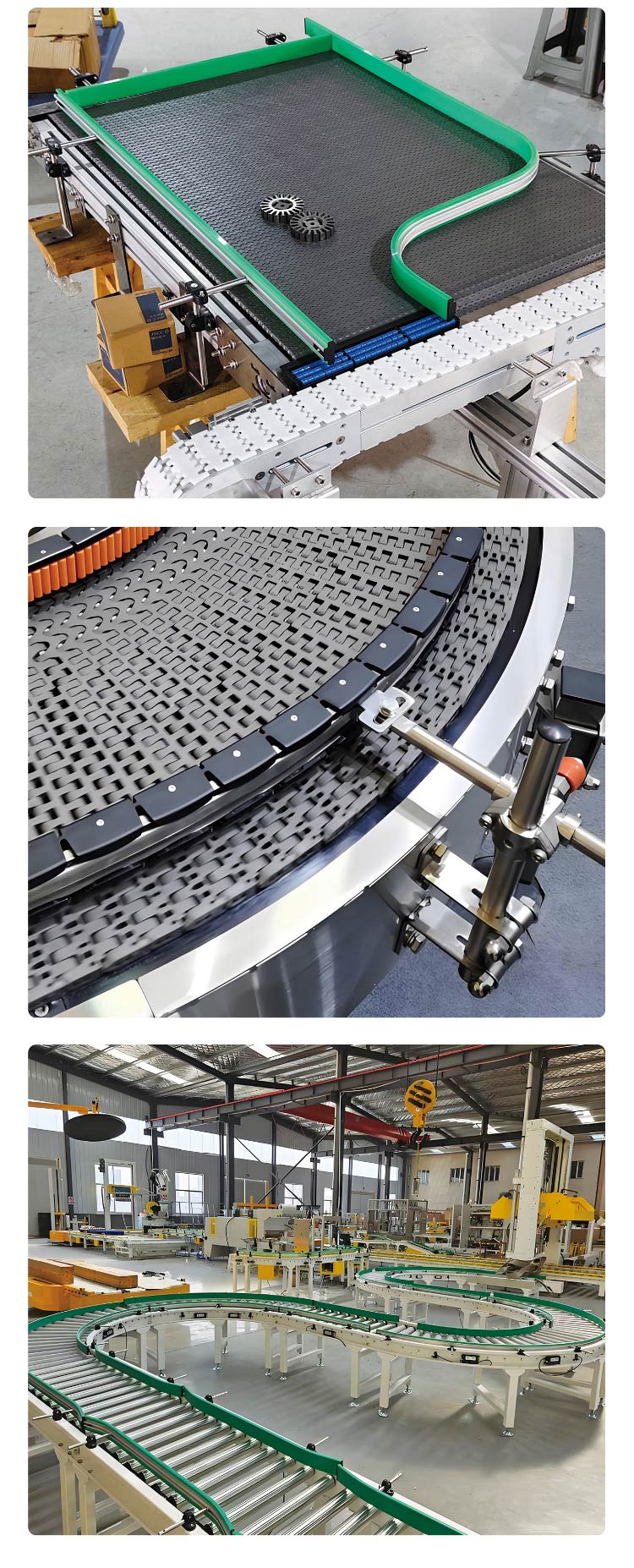

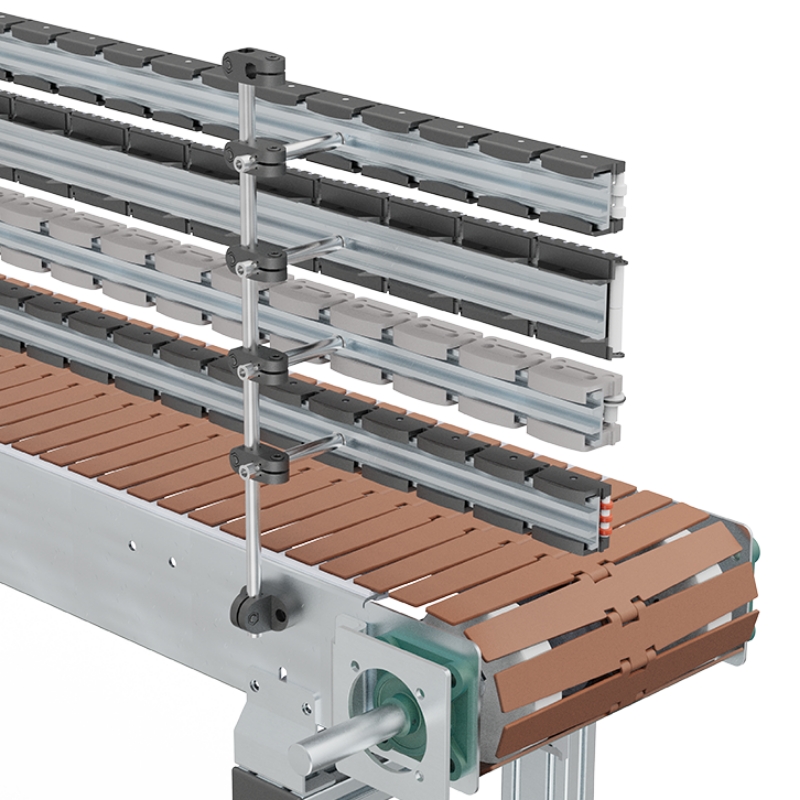

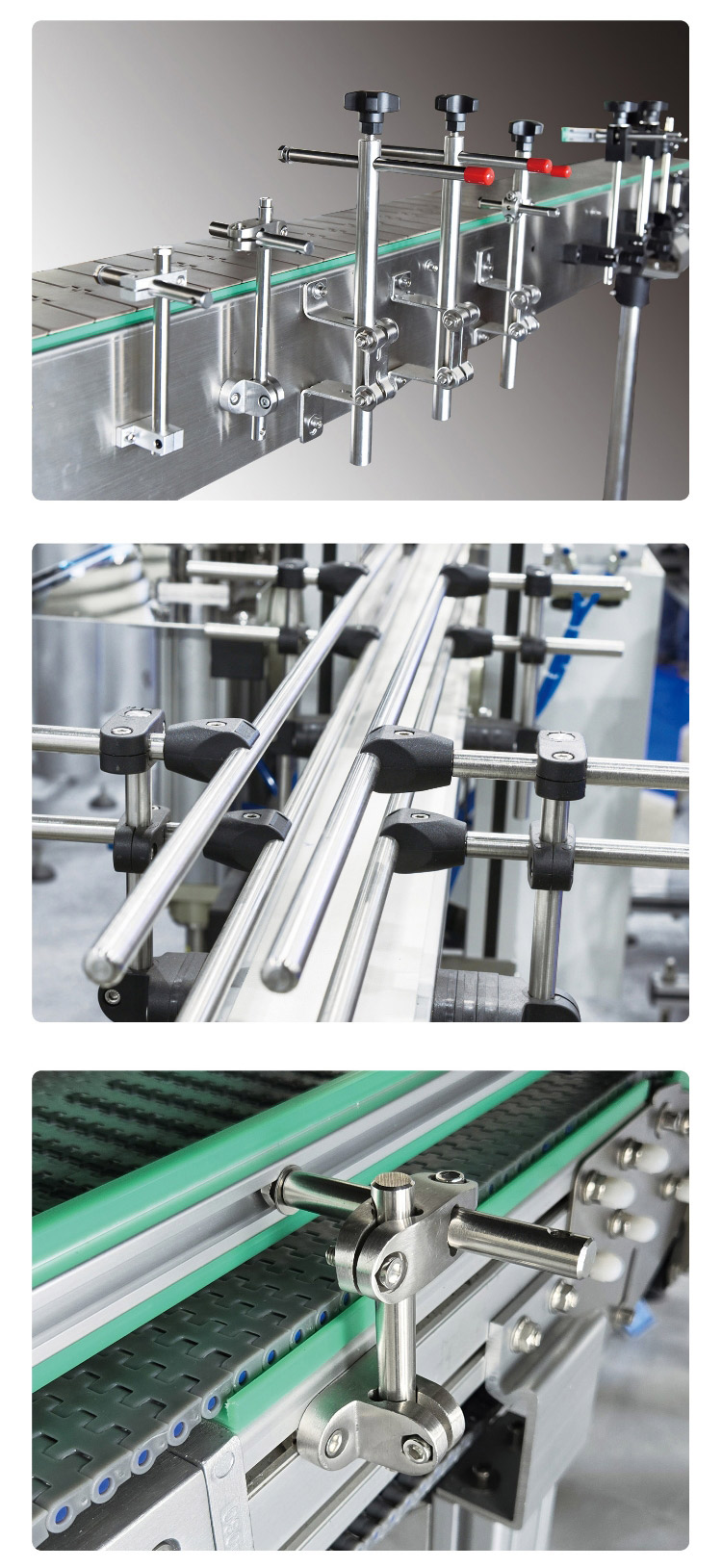

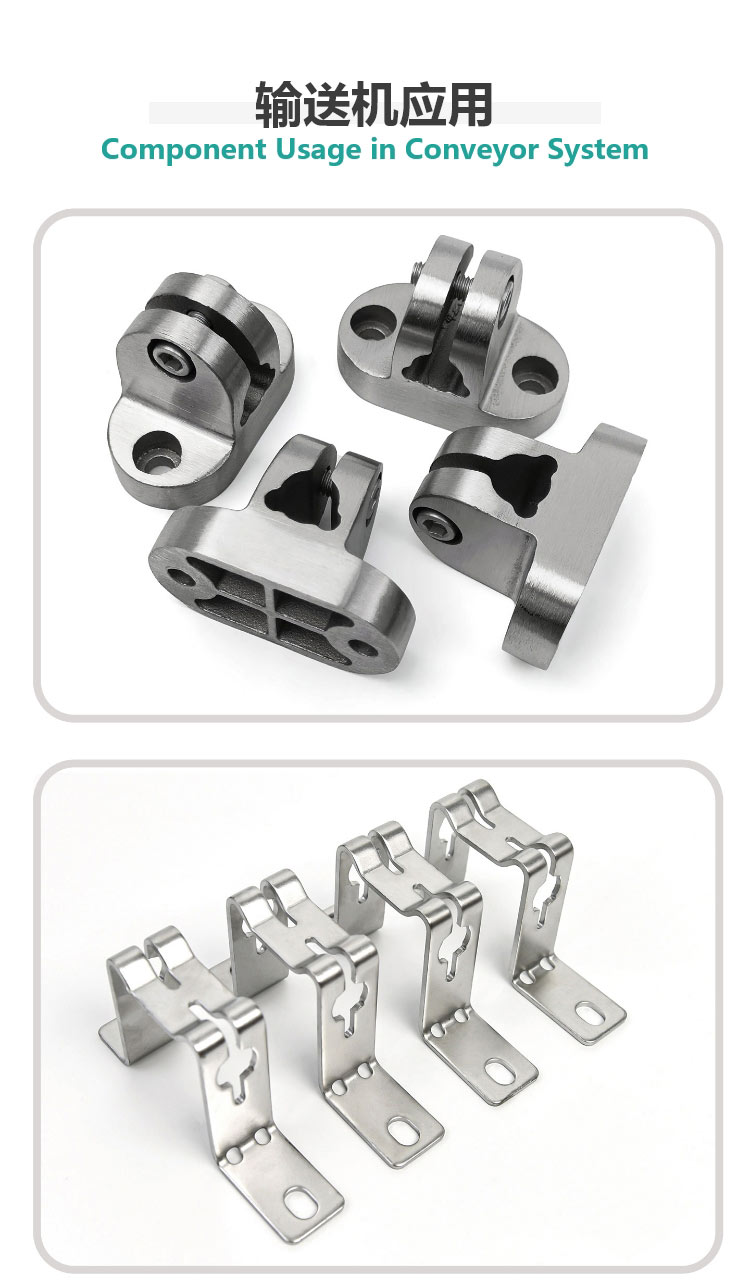

1. Conveyor Guide Rail Mounting

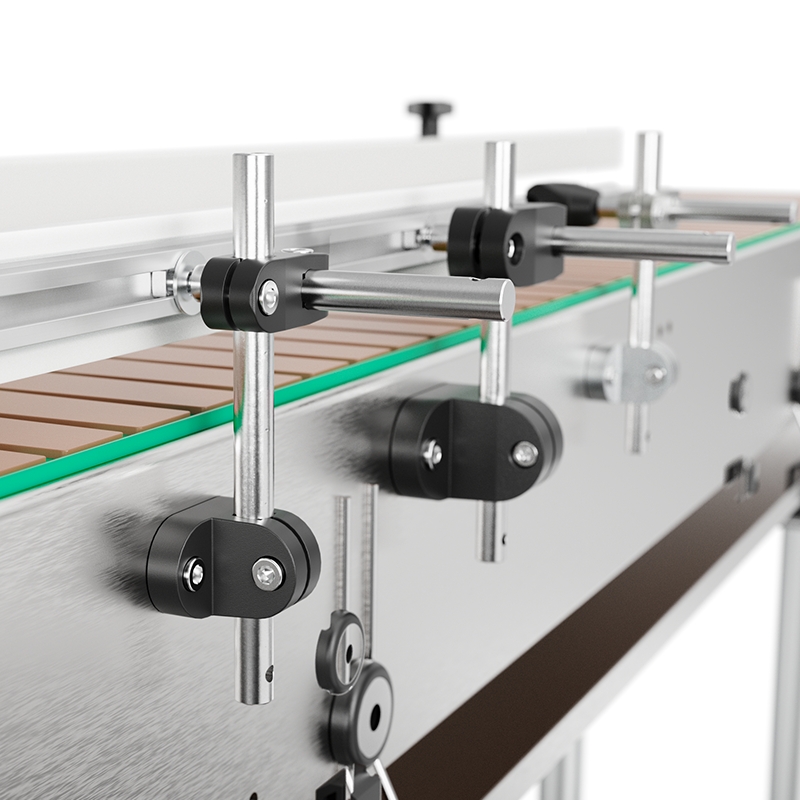

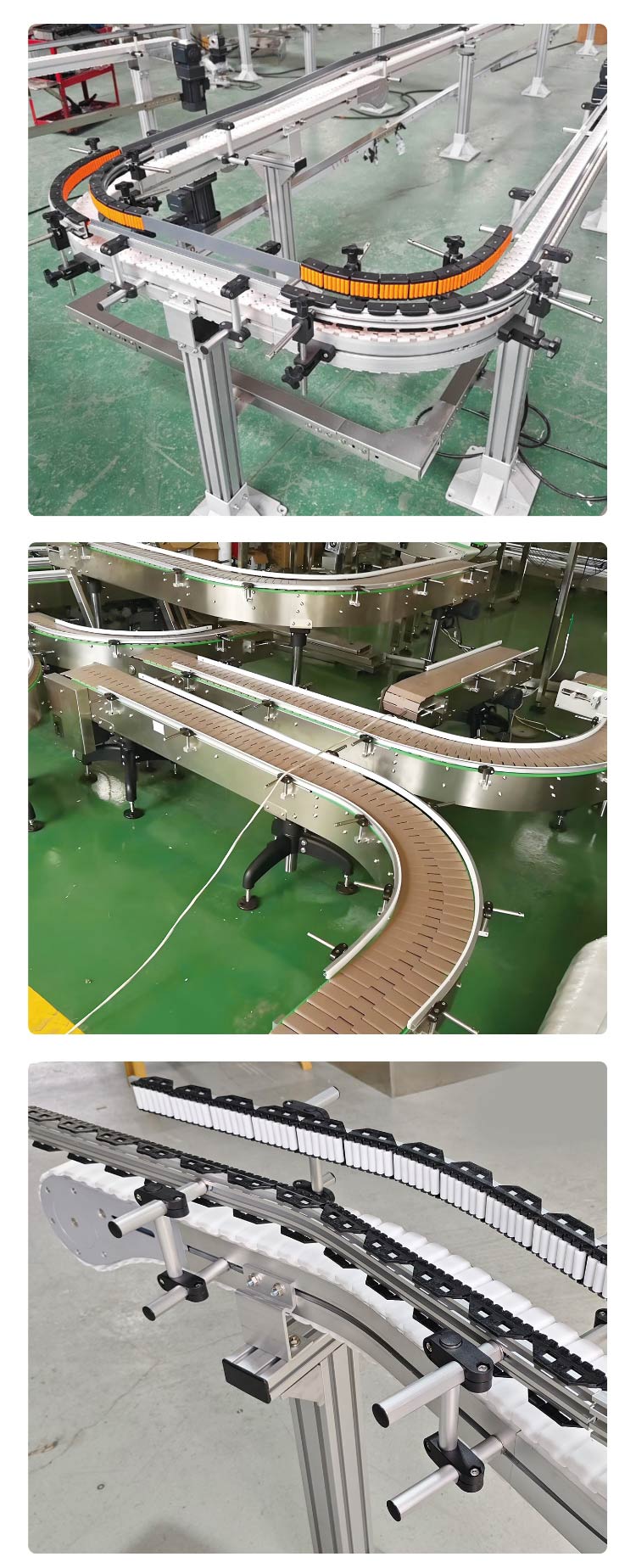

In assembly lines and packaging conveyors, T‑Clamps and Cross Clamps securely attach side guide rails to round or square support rods. The modular clamping system allows quick repositioning of guides for different product widths. Stainless steel versions are preferred in food and beverage lines where frequent washdowns require corrosion‑resistant hardware.
2. Sensor & Photoelectric Switch Mounting
The clamps provide stable platforms for mounting proximity sensors, photoelectric switches, and inductive sensors along production lines. With diameter compatibility ranging from 8mm to 30mm, the same clamp can hold sensor barrels or support rods. This simplifies sensor integration for automated pick‑and‑place stations, counting positions, and quality inspection points.
3. Assembly Line Fixture & Bracket Construction
For custom assembly workstations and lean manufacturing cells, T‑Clamps and Cross Clamps enable rapid construction of adjustable work platforms, tool holders, and component presentation racks. The reconfigurable nature supports quick changeover between product models without dedicated tooling. Both plastic and aluminum versions are lightweight, reducing overall frame weight for manually repositioned lines.
