Product Overview & Core Features of Stainless Steel Sushi Chain

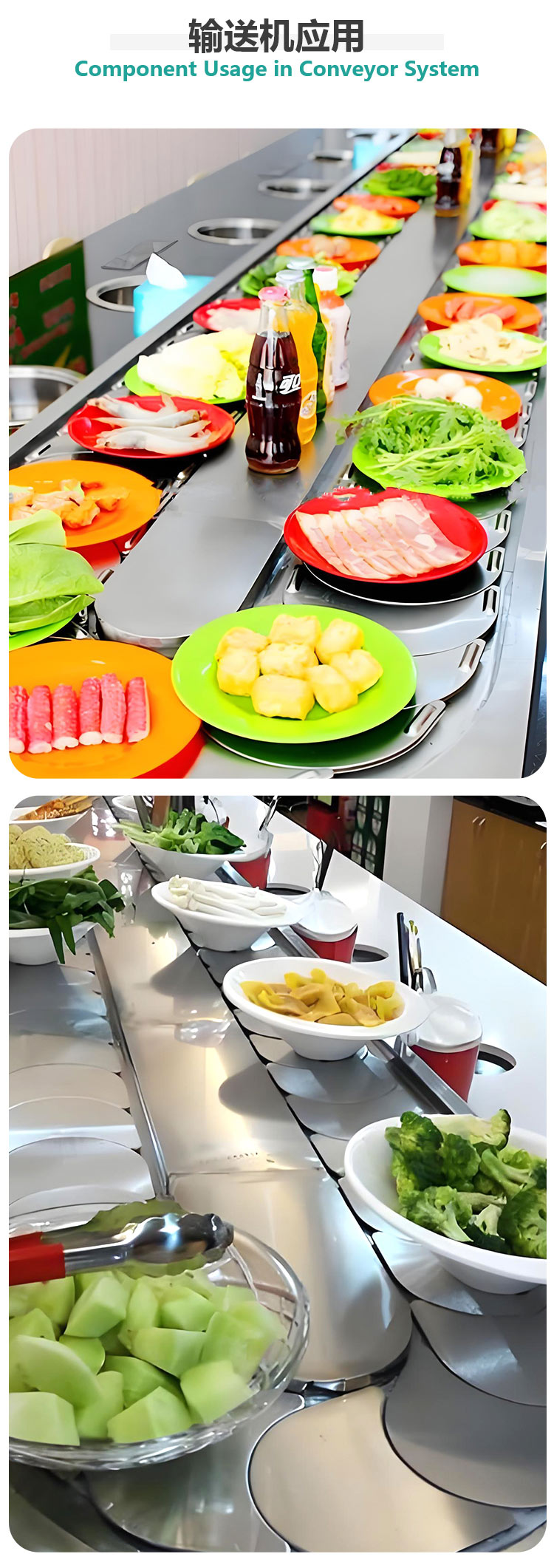

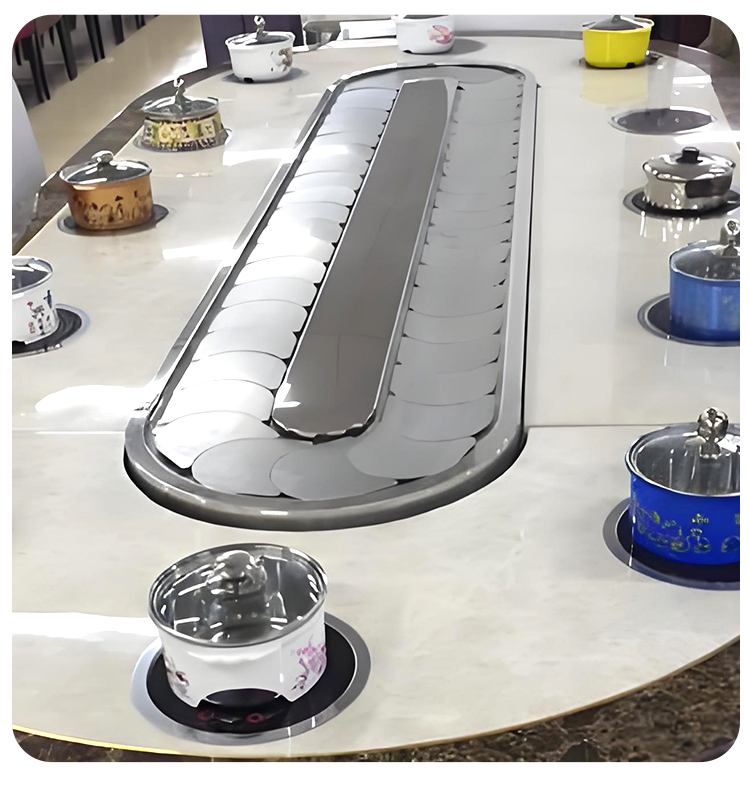

Stainless steel sushi chain is a purpose-built conveyor component designed for revolving food service systems and automated food display lines. Constructed from SUS304 or SUS316 stainless steel, this chain operates within food contact environments where moisture, food acids, and regular washdowns are present. The interlocking plate design creates a continuous conveying surface that carries plates, bowls, and trays along defined conveyor paths.
Material Construction & Corrosion Resistance

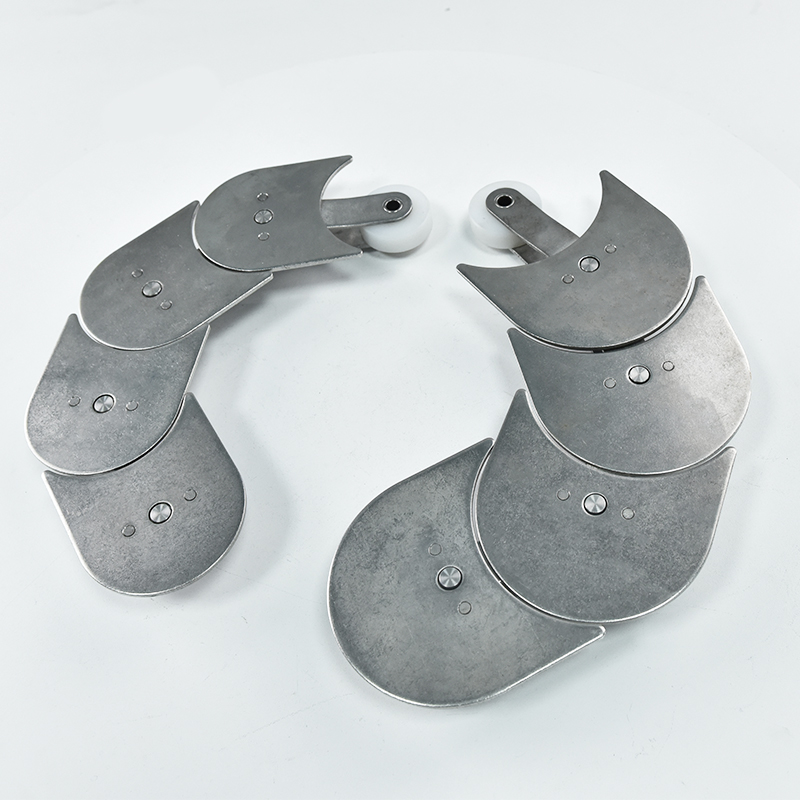

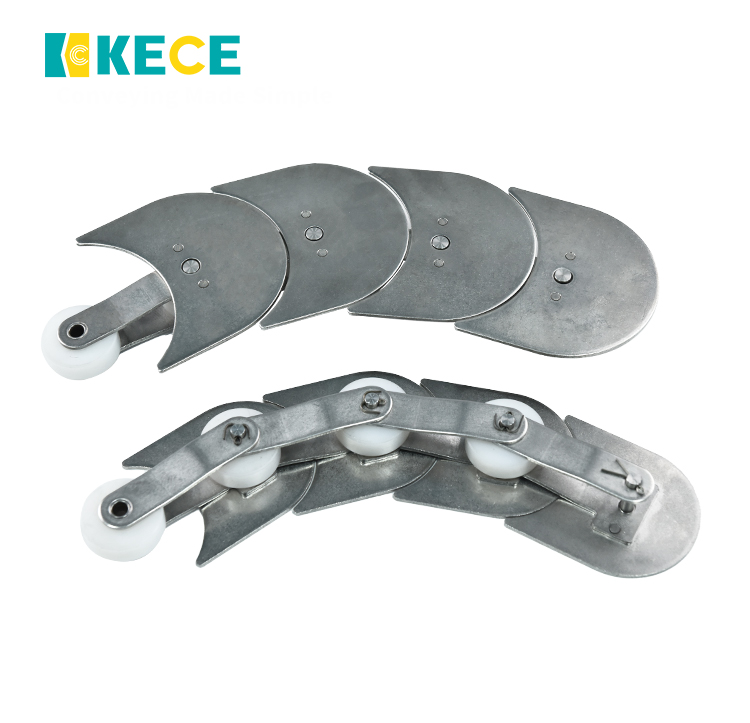

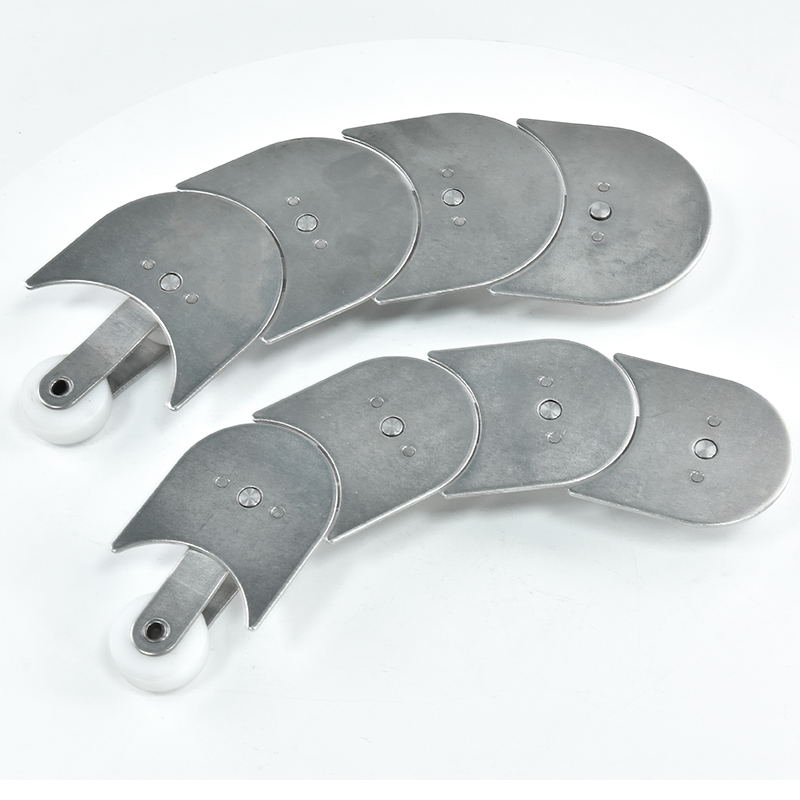

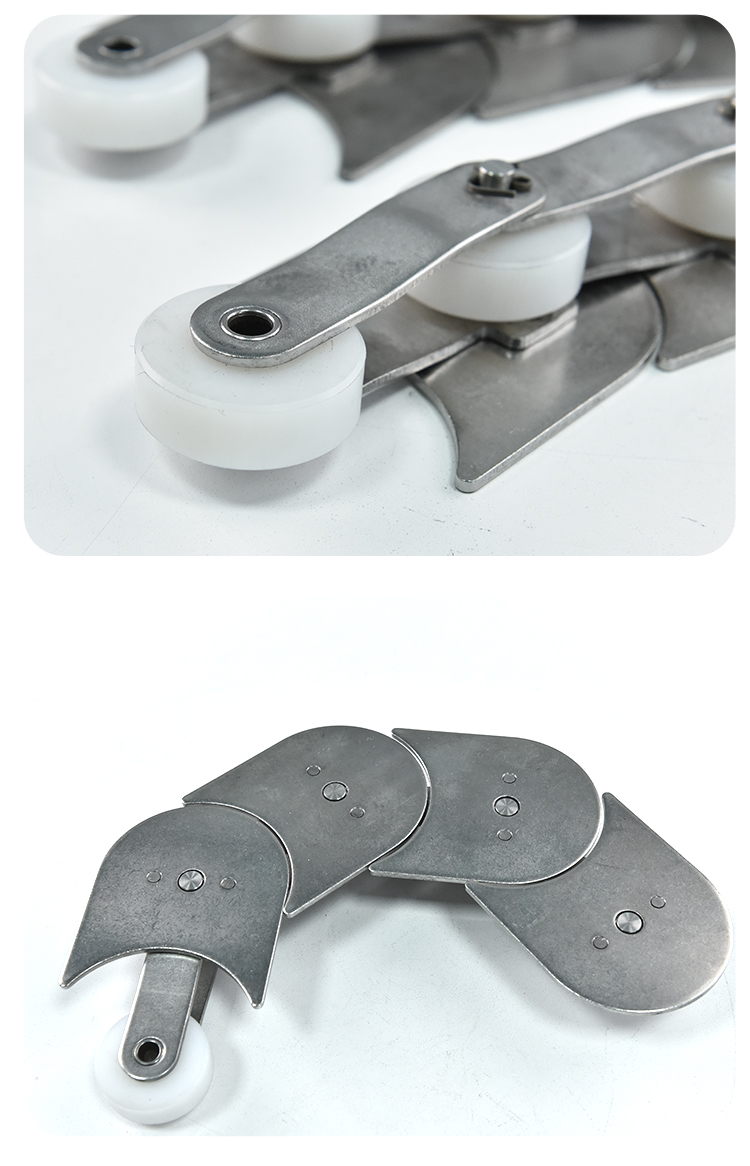

The chain links are stamped from SUS304 or SUS316 stainless steel sheet, with food-grade polymer rollers integrated into each link assembly. SUS304 grade provides resistance to common food substances including soy sauce, vinegar, and cleaning detergents. SUS316 grade is available for applications involving prolonged exposure to salt-based ingredients or acidic food products. The non-porous metal surface limits bacterial adhesion and supports sanitization with hot water or food-safe cleaning agents. The material complies with FDA 21 CFR and EU 1935/2004 food contact regulations.

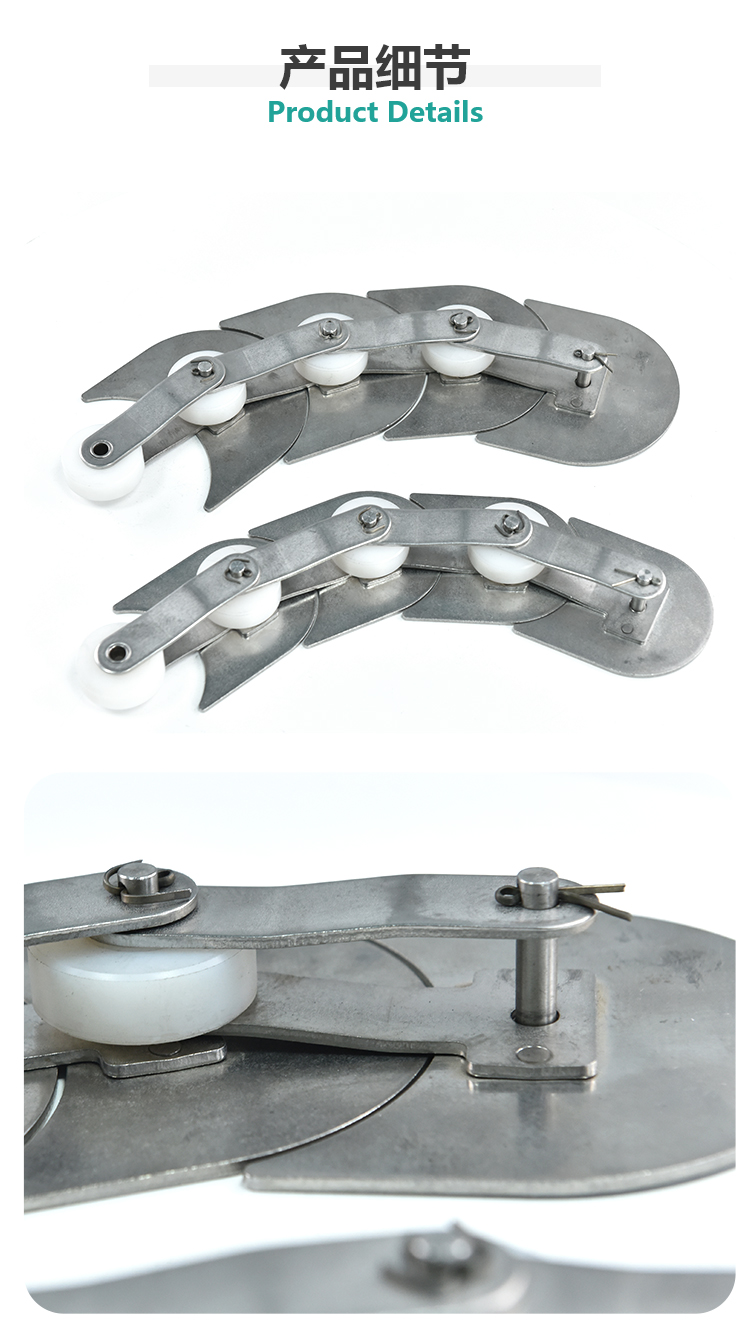

Each link is manufactured with controlled pitch tolerances, resulting in consistent chain movement at operating speeds of 0.5-3 m/min. The precision-machined link pins and bushings reduce friction and maintain steady motion without jerking or vibration, which helps prevent plate shifting during transit. Stainless steel construction exhibits low thermal expansion, so chain tension remains stable across temperature variations found in chilled and ambient food display sections. The chain runs without external lubrication when specified, eliminating oil contamination risks in food zones.
Hygiene & Maintenance Design

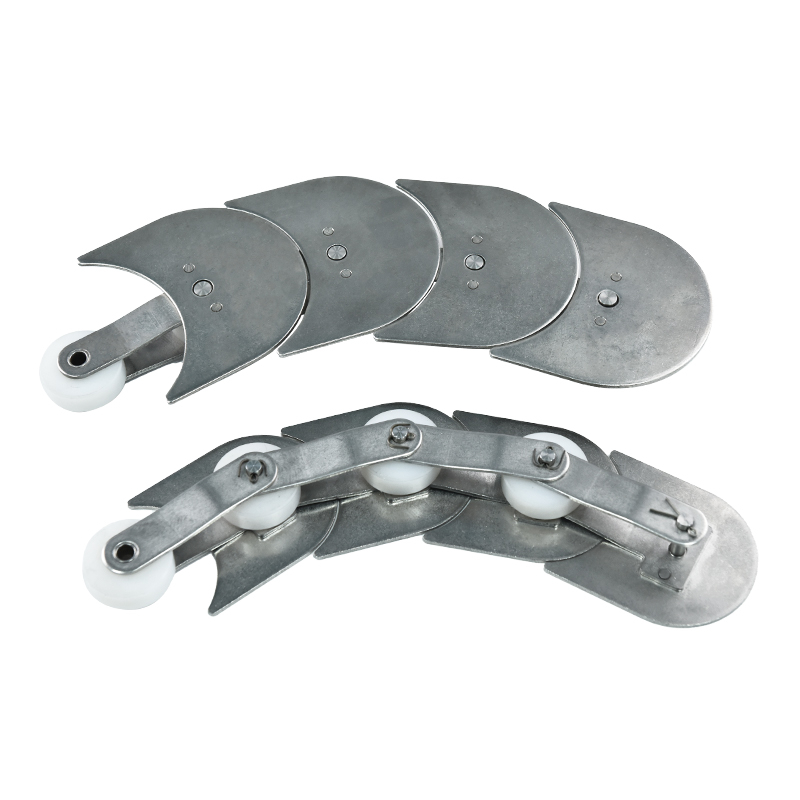

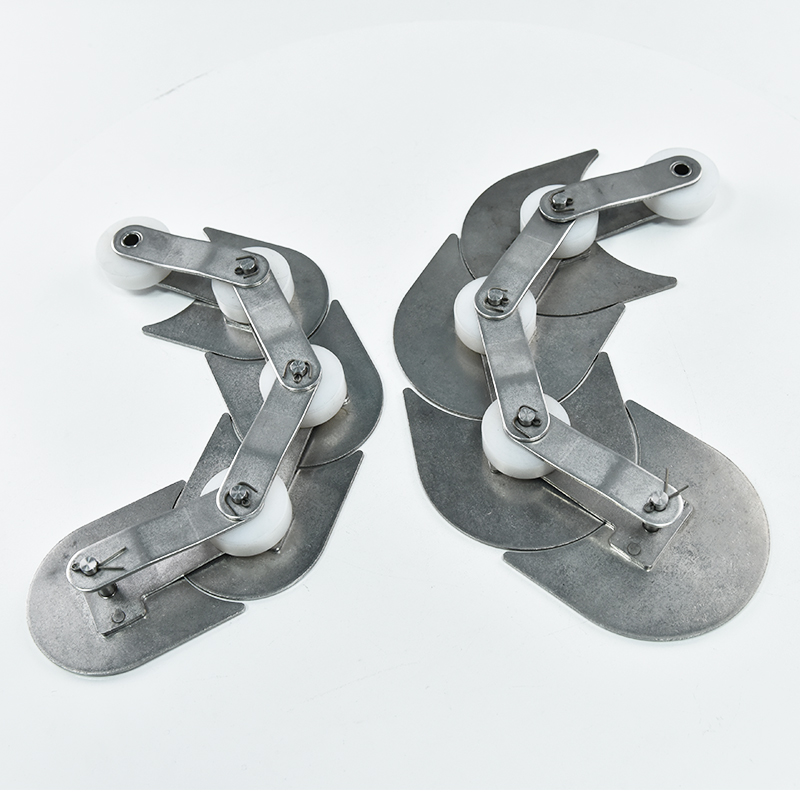

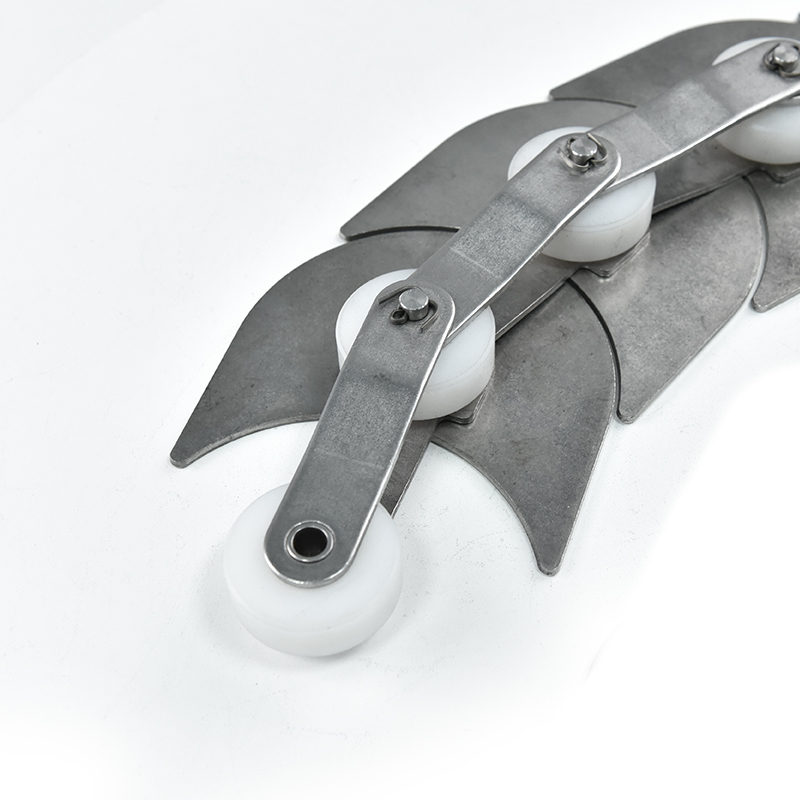

The open-link structure allows condensation, liquid drips, and small food particles to fall through the chain surface into collection trays below. This drainage feature reduces residue buildup between plates and lowers manual cleaning frequency. Individual links can be removed for deep cleaning or replacement without disassembling the entire chain run. Integrated white polymer rollers reduce metal-to-metal contact noise and support smooth travel around curved conveyor sections.

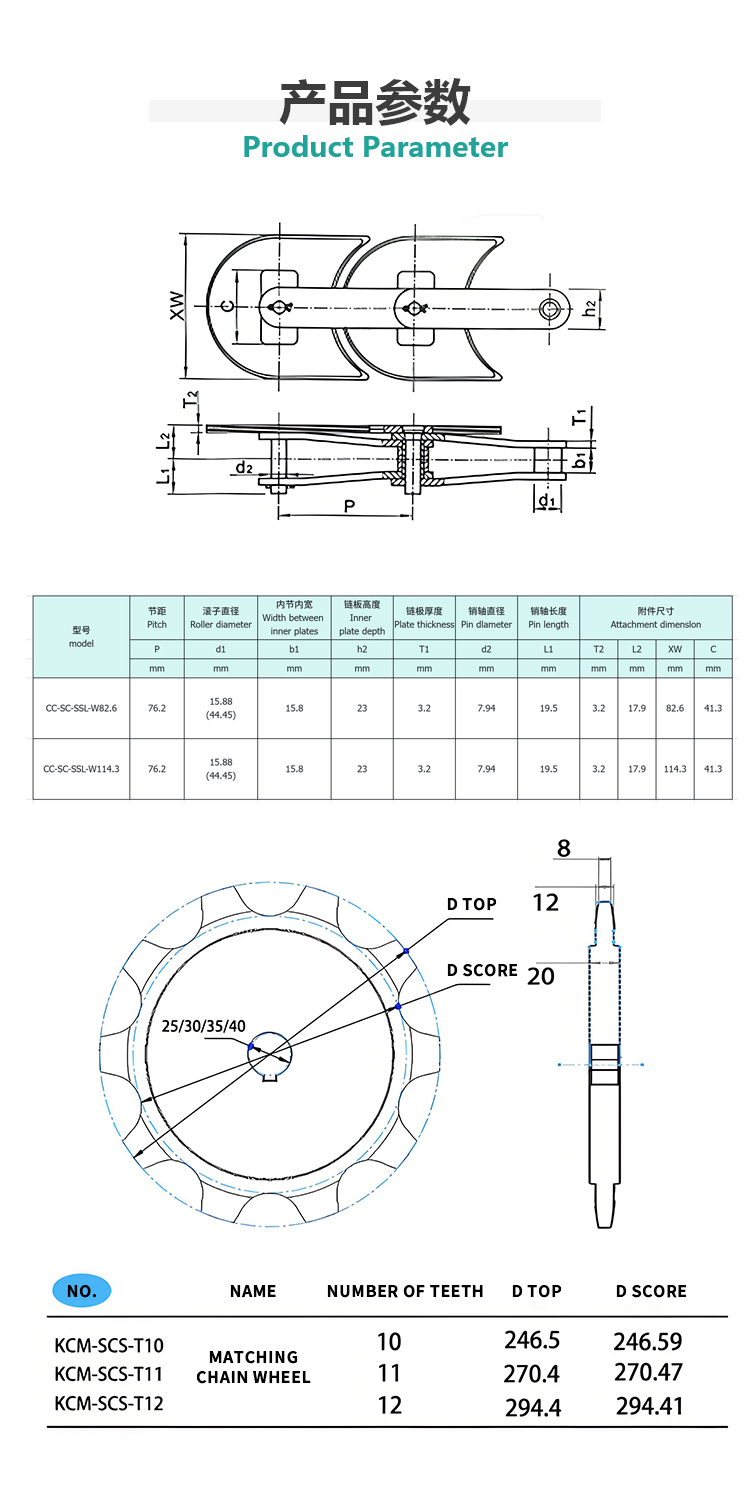

Technical Specifications of Stainless Steel Sushi Chain
Parameter | Specification |
Material Options | SUS304 Stainless Steel, SUS316 Stainless Steel |
Roller Material | Food-grade polymer |
Operating Speed Range | 0.5-3 m/min |
Surface Type | Flat interlocking plate |
Food Contact Compliance | FDA 21 CFR, EU 1935/2004 |
Lubrication Requirement | Dry operation or food-grade lubricant only |
Temperature Tolerance | Ambient to chilled food display range |
Drainage Feature | Open-link fall-through design |
Disassembly Method | Individual link removal |
Customization & Procurement Details for Sushi Chain Systems
Available Customization Options

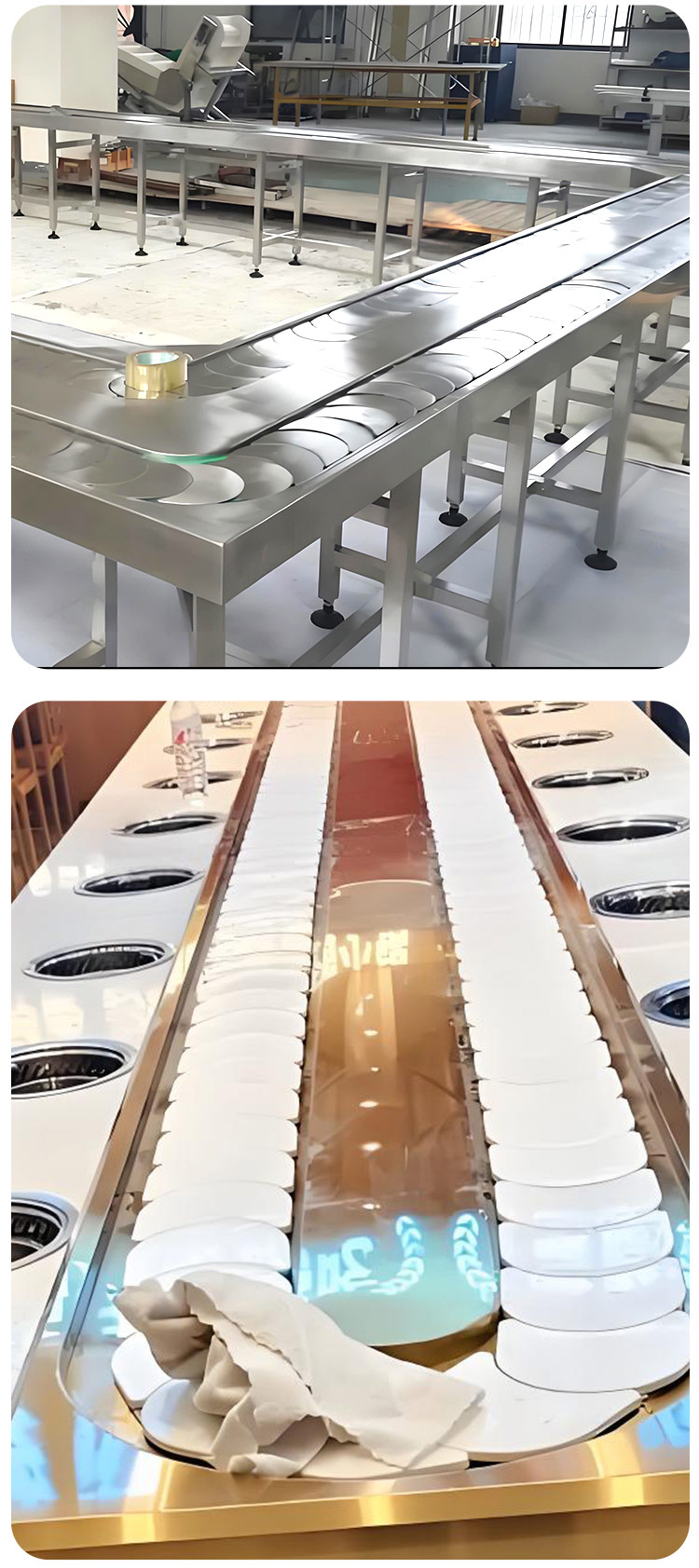

Chain length is fabricated to customer-specified dimensions. Curve segments, incline sections, and return path configurations can be engineered to match facility layout requirements. SUS316 material upgrade is available for corrosive environments. Custom plate attachment designs can be developed for non-standard dish sizes or specialized product formats. Side guide profiles and wear strip materials can be specified based on application requirements.
Lead Time & Packaging Specifications
Standard chain sections ship within 5-7 business days after order confirmation for accessory-scale quantities. Custom-length configurations require 15-17 business days for fabrication. All components are packed in cardboard cartons with protective padding. Full conveyor system assemblies are crated in custom wooden packaging for transit protection. Lead times are calculated in business days and exclude public holidays; actual delivery duration varies by carrier and destination.
FAQ About Stainless Steel Sushi Chain
Can the stainless steel sushi chain be installed in existing conveyor frames?

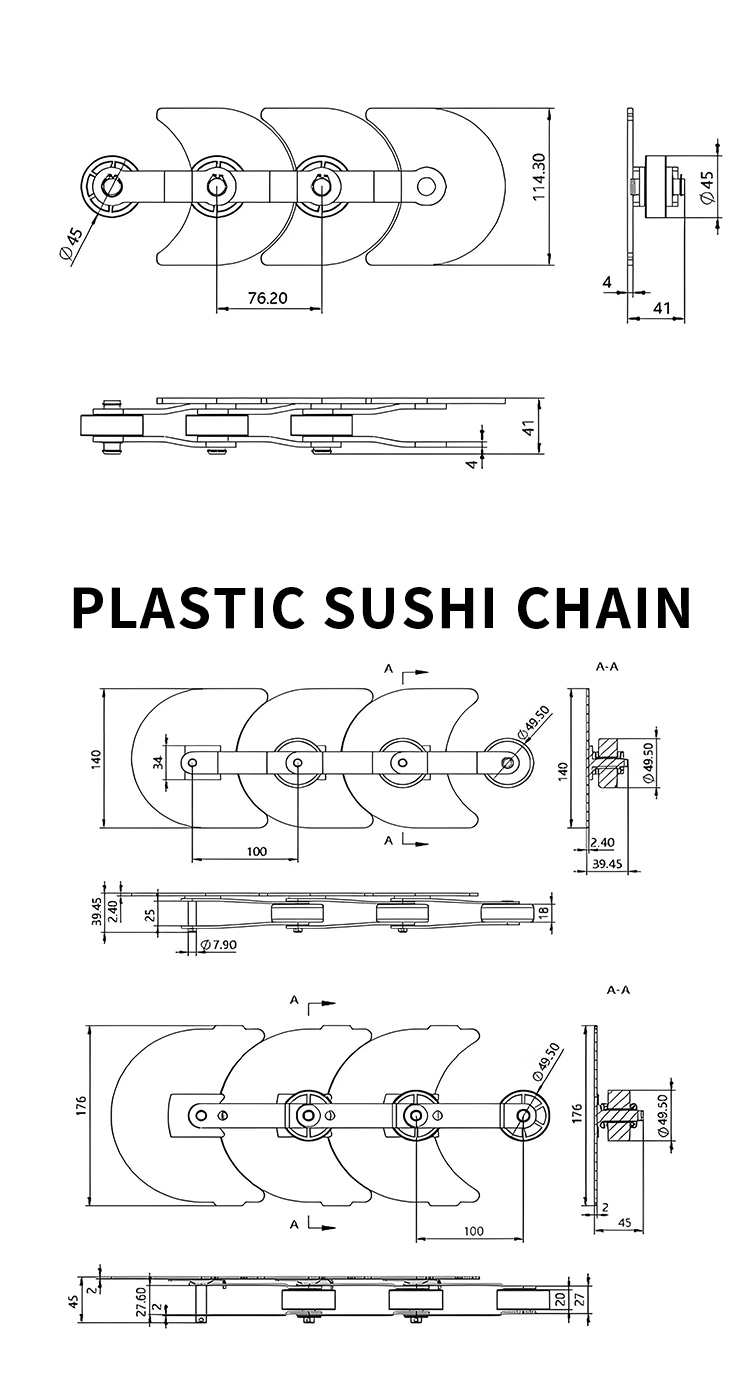

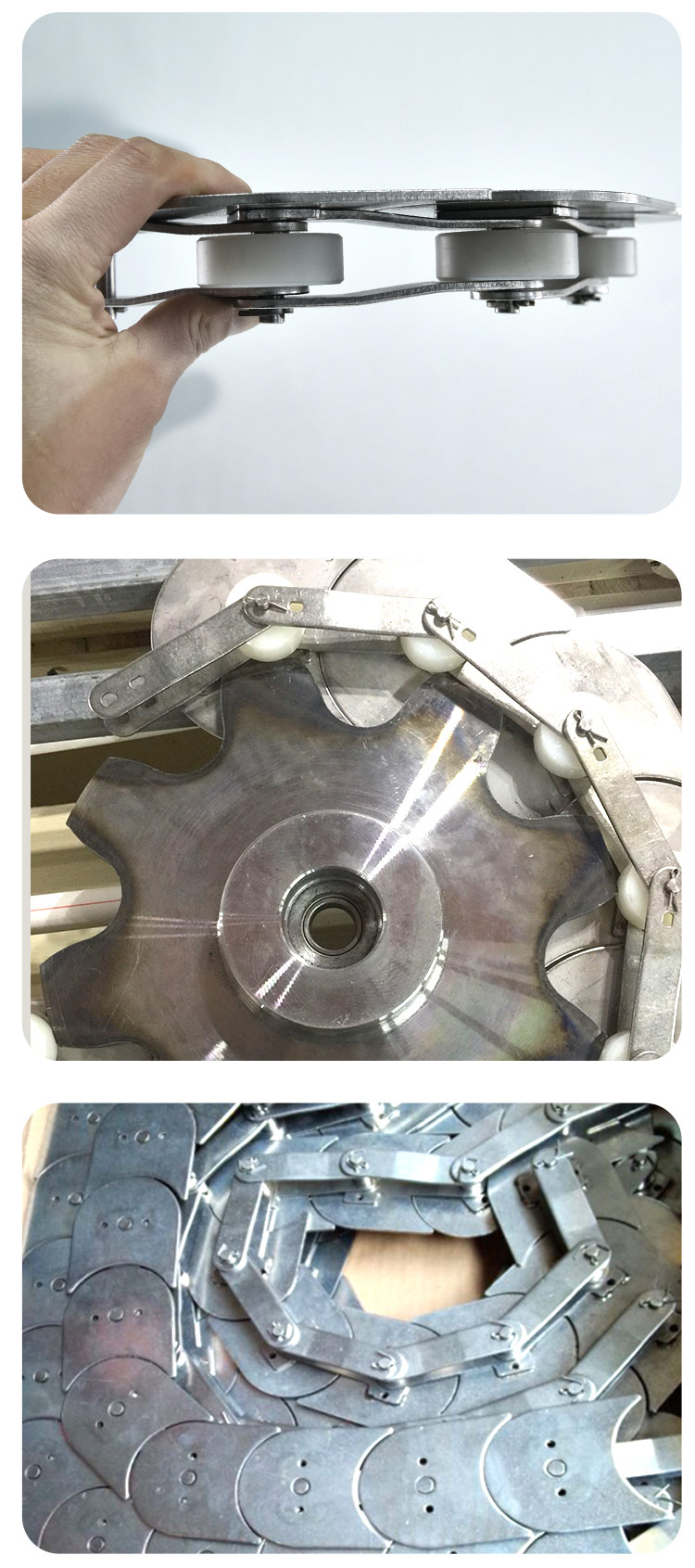

The chain can be specified to match existing conveyor pitch and sprocket dimensions. Technical drawings of the current frame can be reviewed to confirm compatibility before ordering. Sprocket replacement may be required if the existing drive system uses a different chain pitch.
What is the difference between SUS304 and SUS316 grades for this application?
SUS304 is suitable for standard sushi and buffet environments with regular cleaning. SUS316 contains molybdenum, which provides additional corrosion resistance for applications involving salt, brine, or highly acidic food products. Material selection depends on the specific food types and cleaning chemicals used in the facility.
How is the chain cleaned and maintained?
The chain can be cleaned in place with hot water and food-safe detergents during scheduled washdowns. Individual links can be removed without full disassembly for deep cleaning or component replacement. Routine inspection includes checking roller rotation and link pin condition at intervals determined by operating hours.
