1. Precision Carton Indexing & Positioning

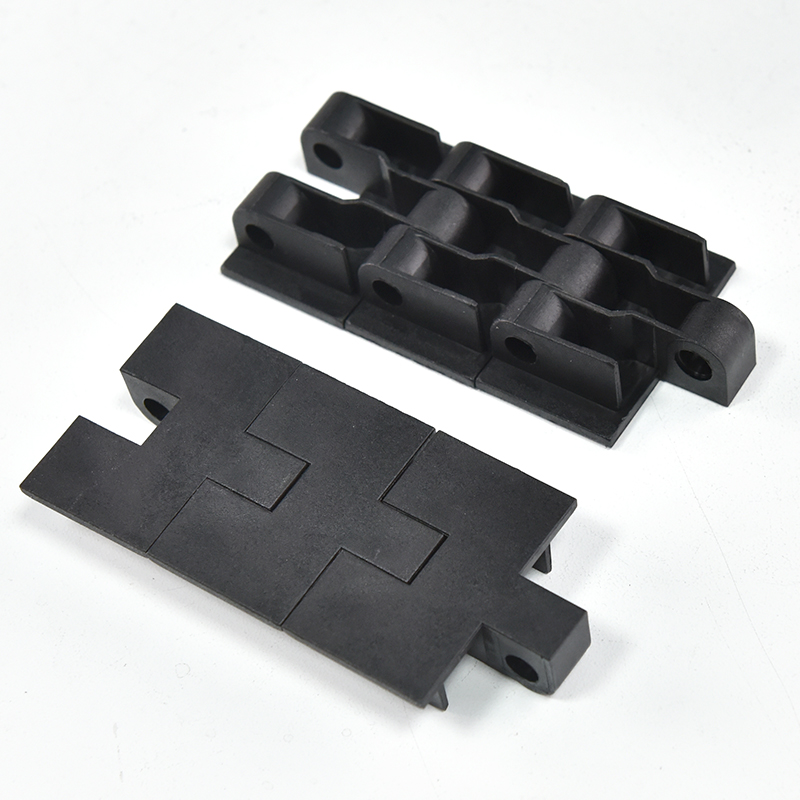

The chain plate is manufactured with tight pitch tolerances (±0.2mm per meter), ensuring that cartons are presented accurately to each packaging station (code printing, leaflet insertion, glue application, and folding). This precision reduces misfeeds, glue smears, and folded flaps, resulting in lower rejection rates and higher line efficiency.
2. Large 254mm Width for Multiple Lanes
The wide 254mm surface accommodates two or more parallel carton lanes simultaneously, doubling throughput without increasing line length. It also supports oversized cartons or product trays that would overhang narrower chains. The flat, non‑stick surface prevents carton skewing or rotation during high‑speed transport, maintaining consistent gap control.
3. Clean & Lubrication‑Free Operation
The acetal or POK material runs dry, eliminating oil or grease contamination risks that could damage carton appearance or pharmaceutical packaging integrity. The smooth, closed surface resists dust accumulation and is easy to wipe clean. The chain withstands occasional washdowns with mild detergents, supporting good manufacturing practice (GMP) compliance in food and drug packaging.
Product Uses

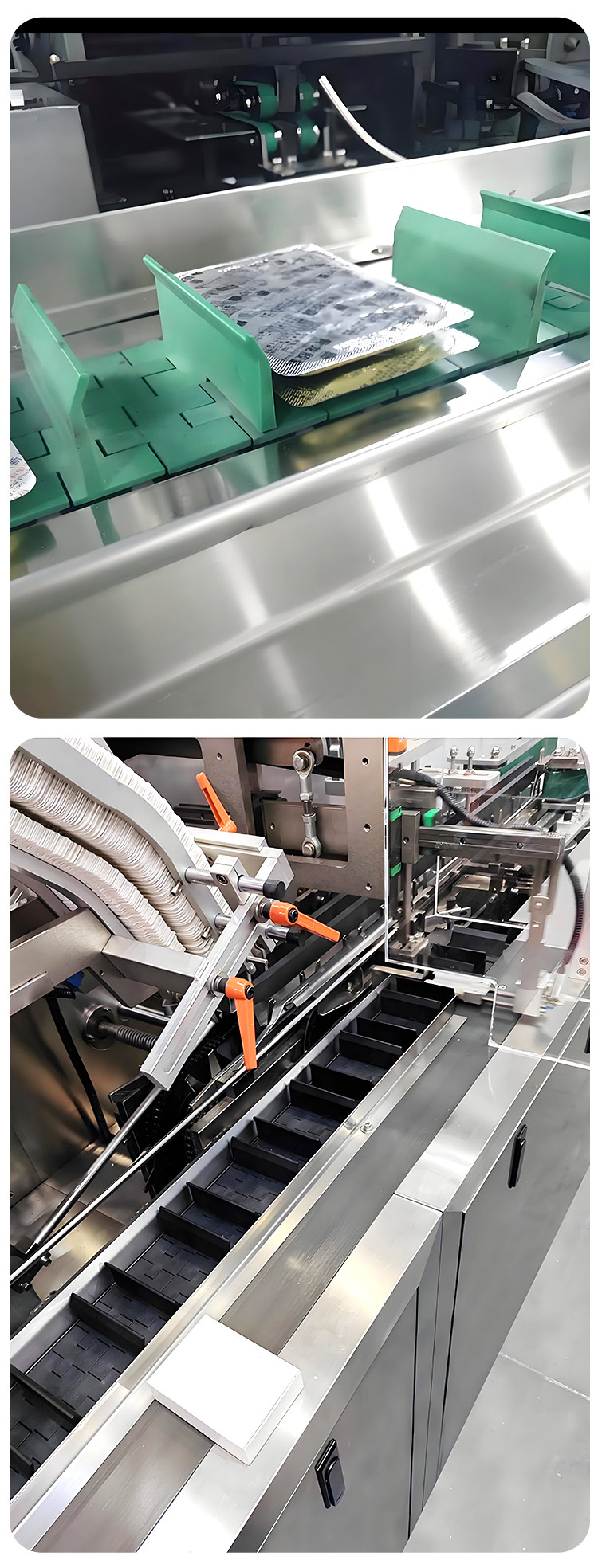

1. Pharmaceutical Cartoning Lines

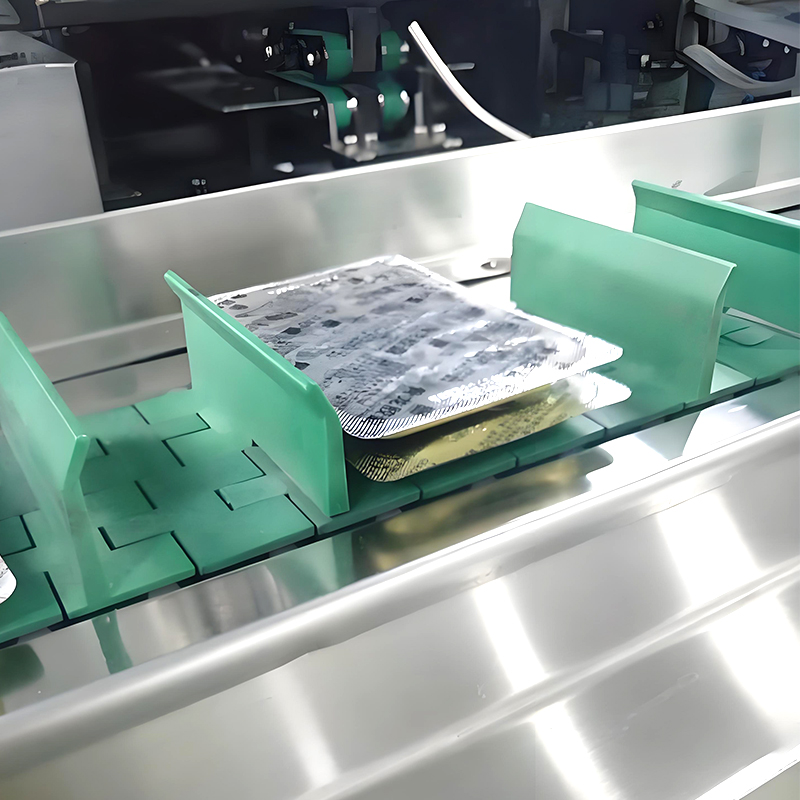

The 254 chain plate is widely used in horizontal cartoners for folding cartons containing blister packs, vials, or bottles. It transports cartons through leaflet insertion, batch code printing, glue application, and final closing stations. The precision pitch ensures folding lugs engage correctly every cycle. FDA‑compliant acetal grades are available for drug packaging.
2. Food & Cosmetic Packaging
In cartoning machines for tea bags, chocolate bars, soap cartons, or cosmetic boxes, the chain plate provides gentle but stable transport. The wide surface supports overhanging flaps, preventing premature folding. The lubrication‑free belt avoids oil marks on printed carton surfaces. Open or lightening holes can be specified for airflow or drainage during washing.
3. High‑Speed Vertical & Horizontal Cartoners
For continuous motion cartoners operating at 200+ cartons per minute, the 254 chain plate delivers the necessary wear resistance and low friction to sustain high cycles. Its impact‑modified POK formulation withstands repeated lug engagement forces. Modular sections allow quick replacement of damaged plates without removing the entire chain, minimizing production downtime.
