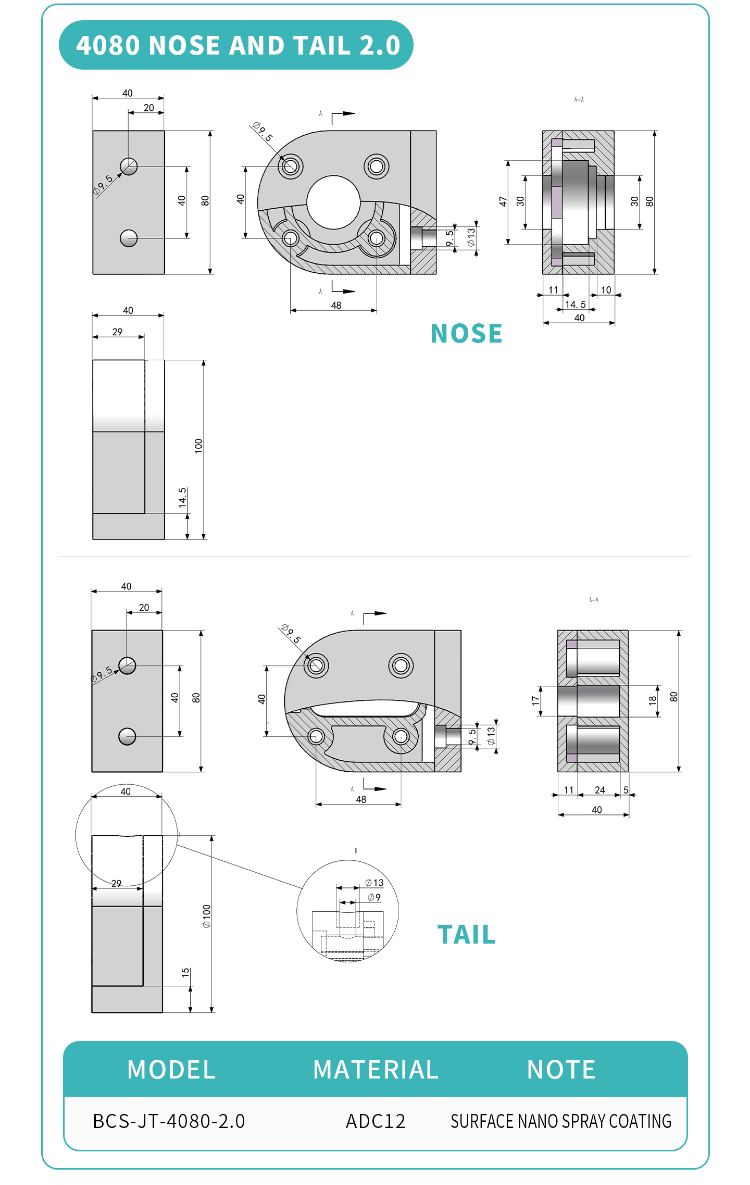

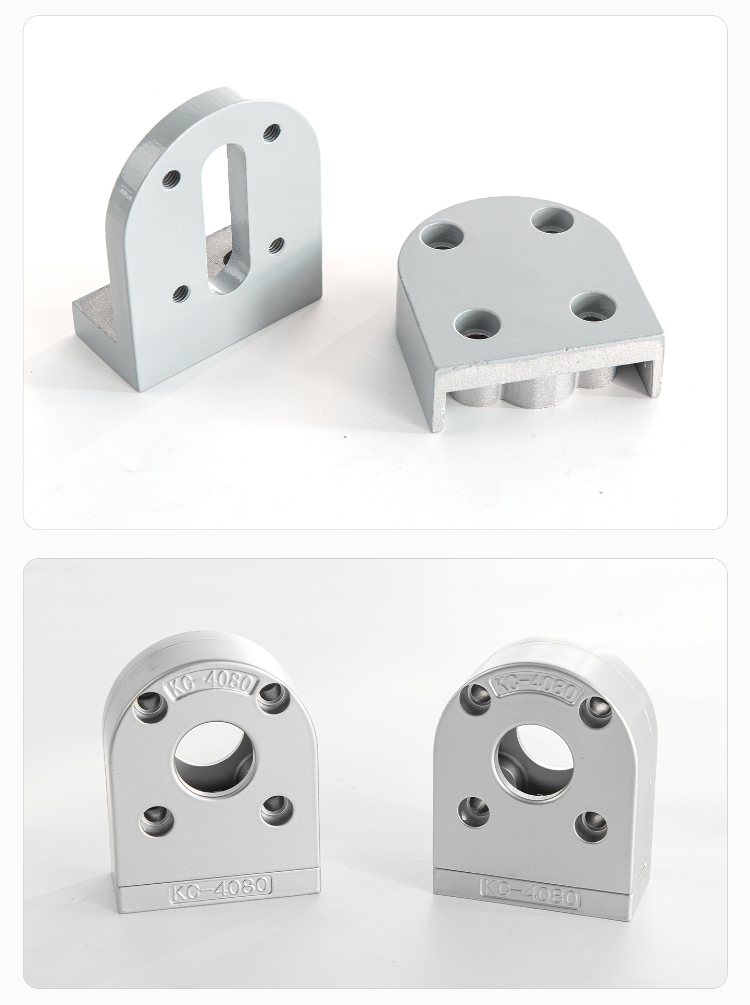

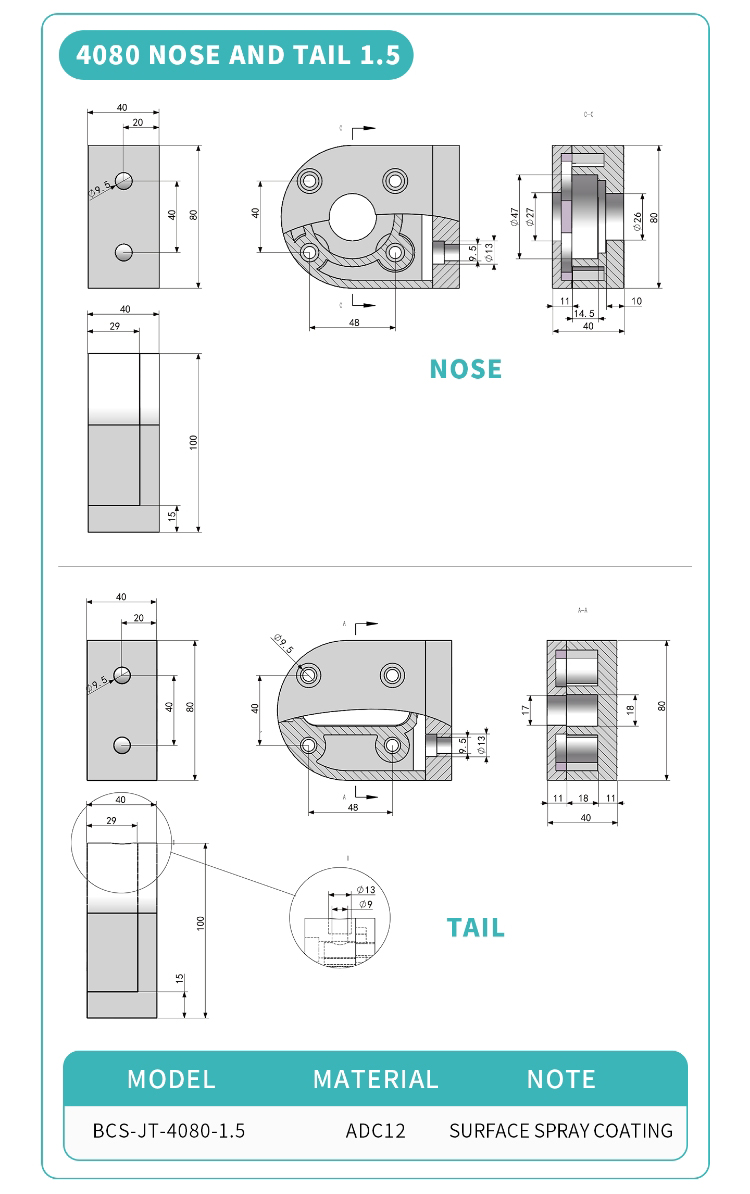

1. Integrated Tensioning & Tracking Adjustment

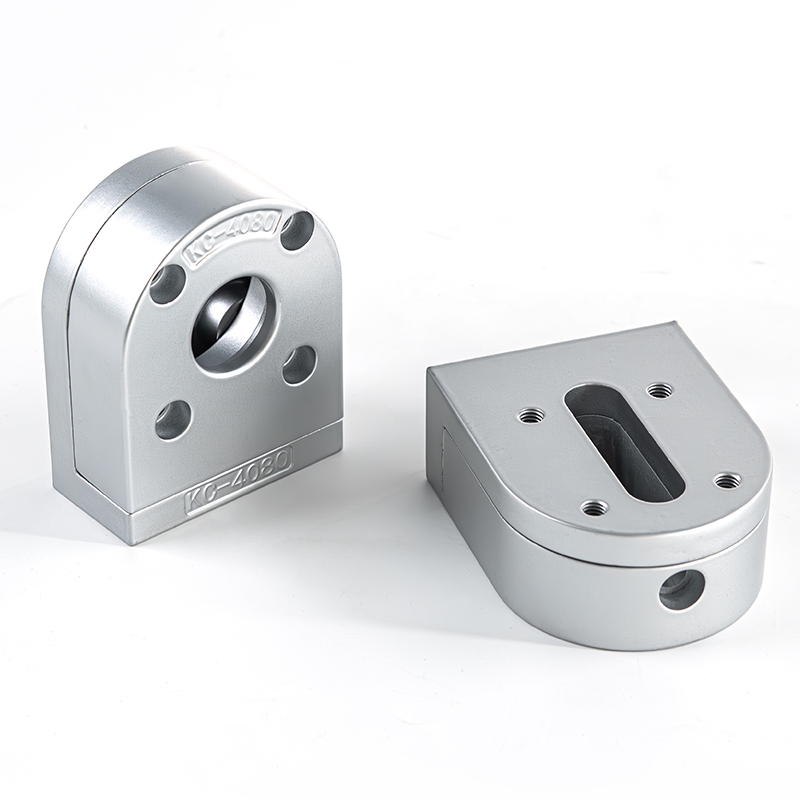

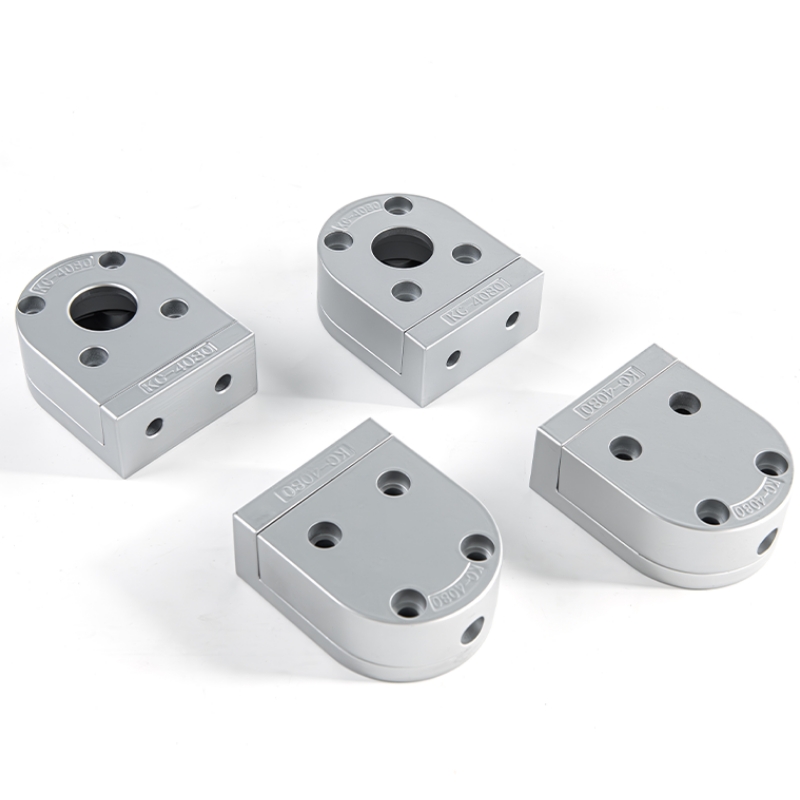

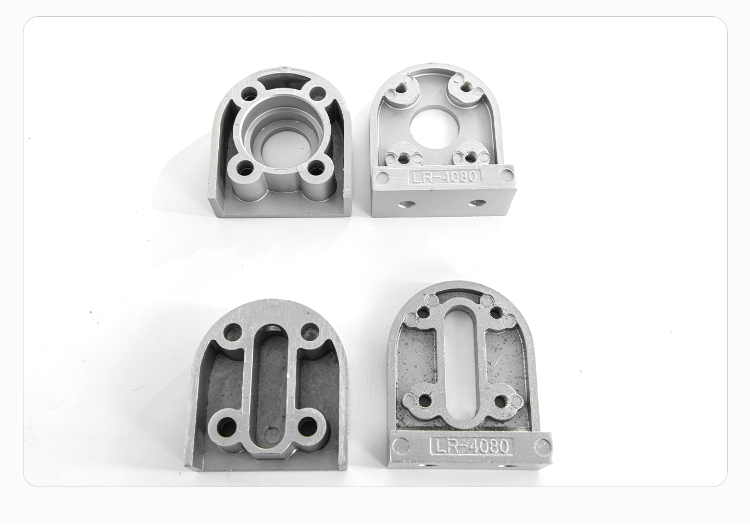

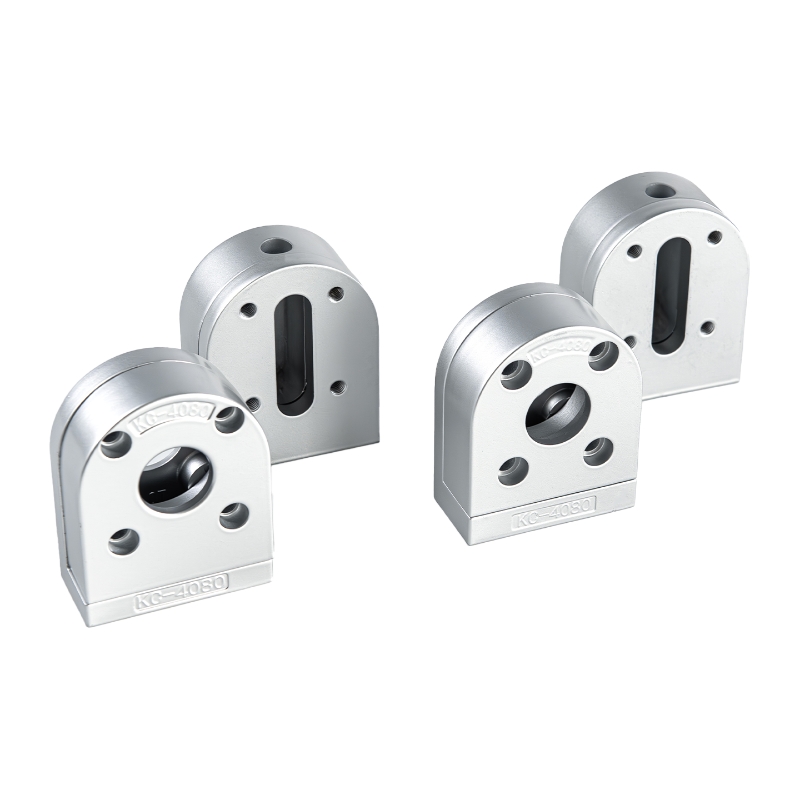

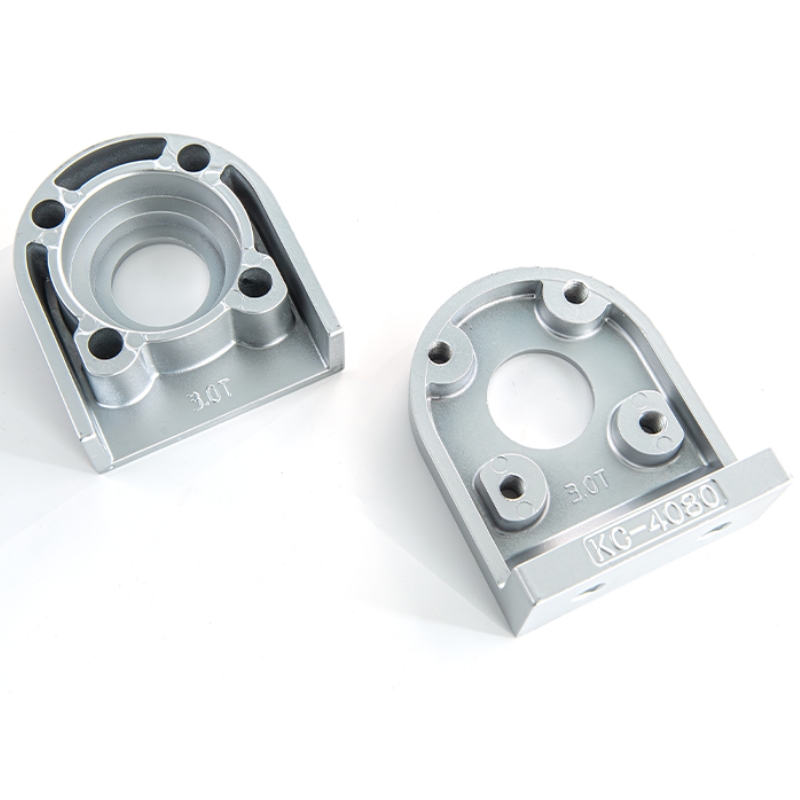

The tail section incorporates a threaded or screw-type tensioning mechanism that allows easy adjustment of belt or chain tension without tools. The same mechanism provides lateral tracking adjustment via movable bearing blocks, enabling precise belt alignment to prevent edge damage or mistracking. This reduces downtime and extends belt life.
2. Modular & Pre-Engineered Interfaces
Both head and tail sections feature standardized mounting holes and T-slots that accept bolt-on accessories such as side guards, end stops, sensor brackets, and dust covers. The sections can be swapped or repositioned along the conveyor length to change drive location or accommodate layout modifications. This modularity supports rapid reconfiguration for production line changes.
3. Heavy-Duty Construction for High Loads

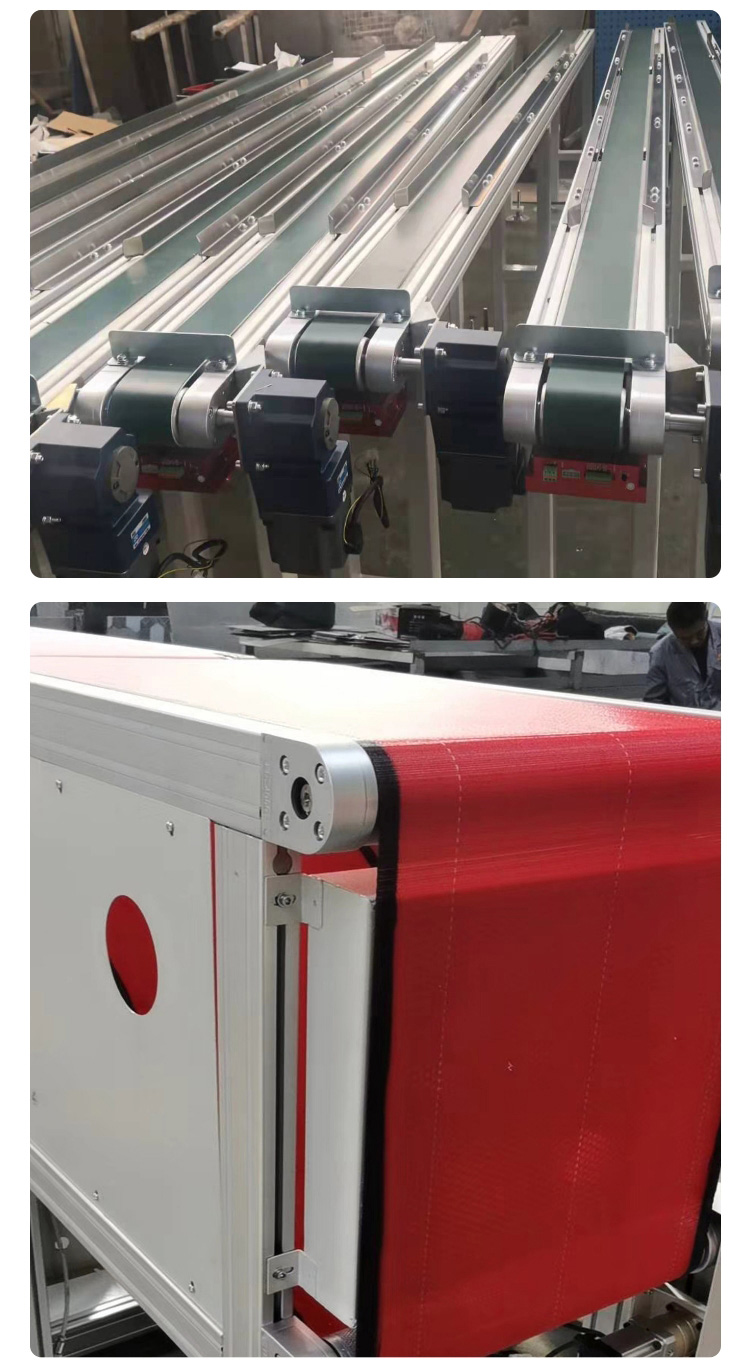

The 4080 extruded aluminum frame and precision steel or stainless steel pulleys are designed for continuous operation under heavy loads. Oversized bearings and sealed housings exclude dust and moisture. The head section includes a robust motor mounting plate that supports gearmotors up to 3 kW or more. Optional stainless steel versions are available for washdown environments.
Product Uses

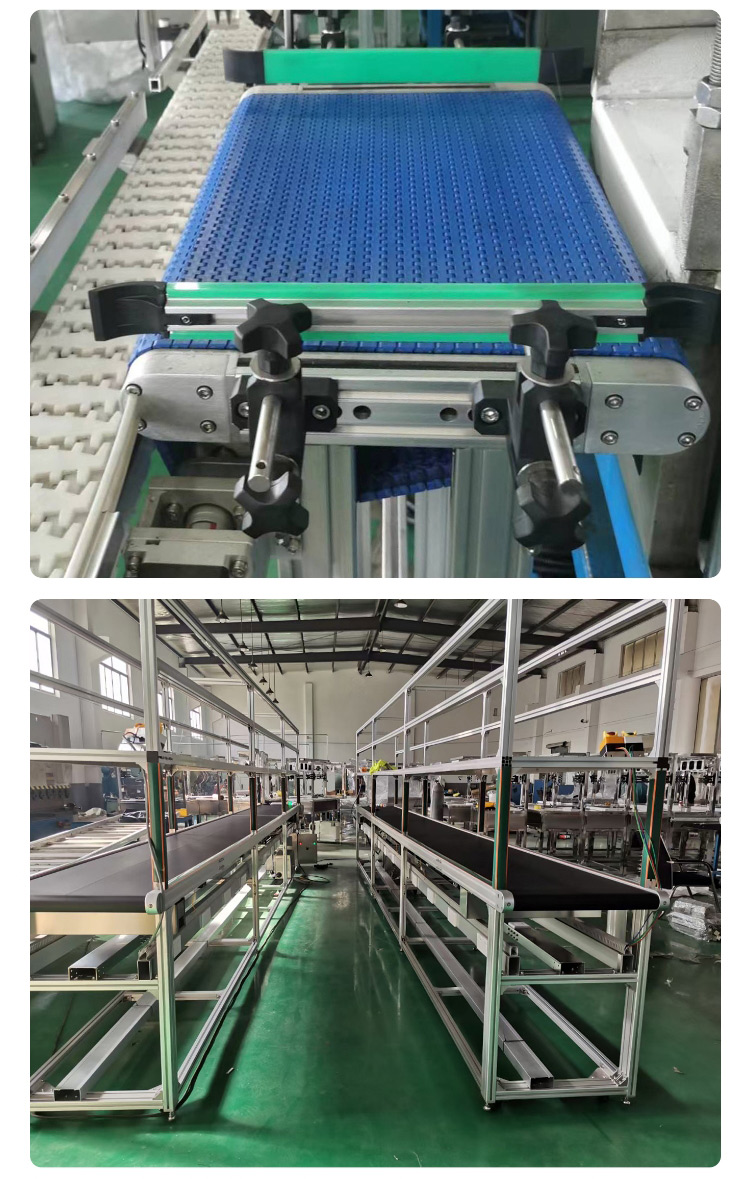

1. Heavy-Duty Packaging & Pallet Conveying

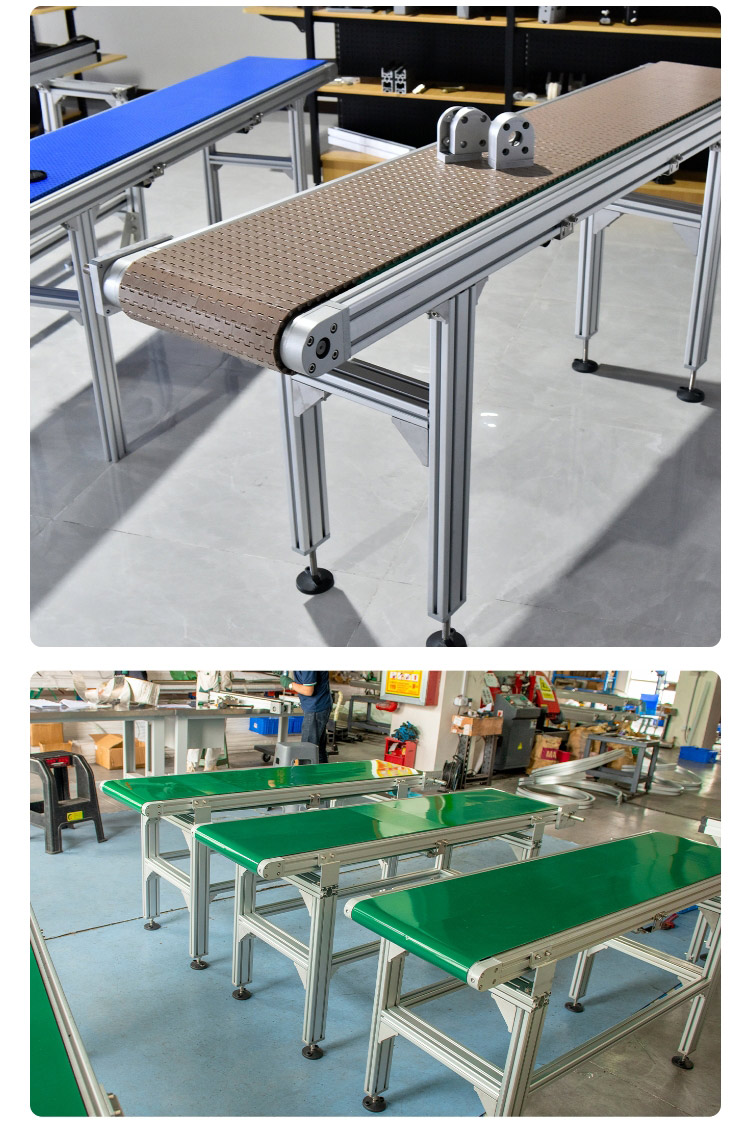

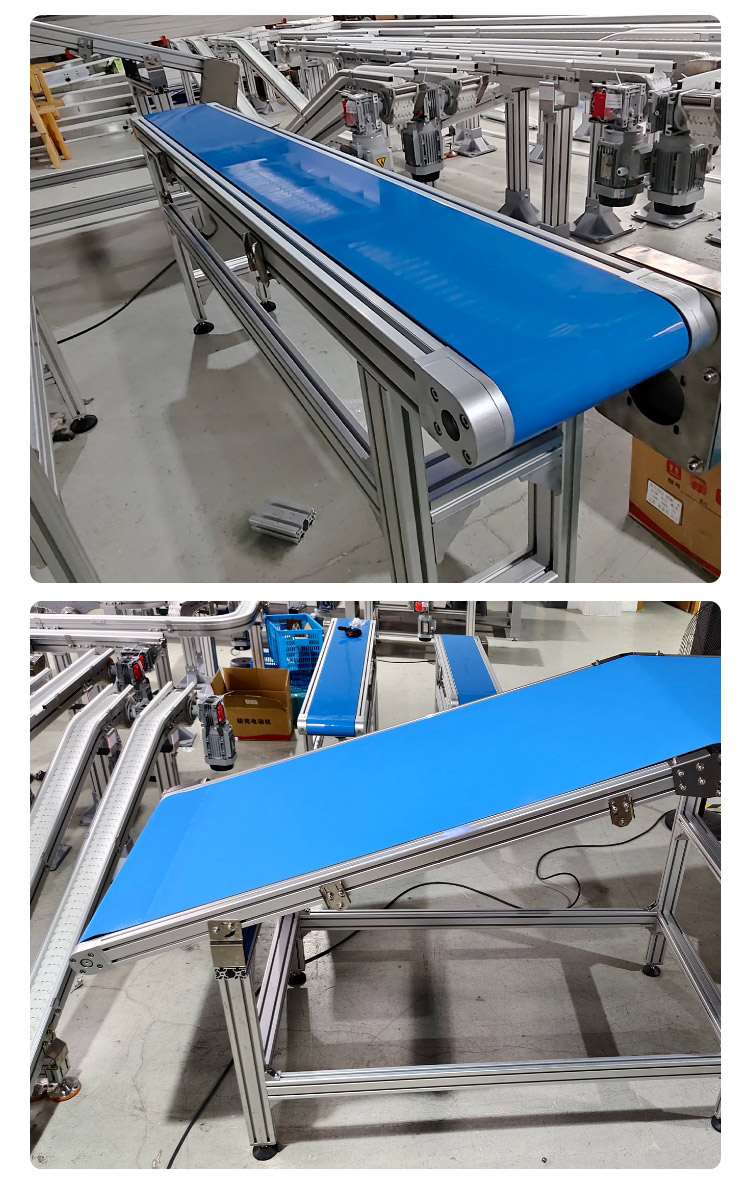

The 4080 head and tail sections are used in stretch wrappers, palletizers, and heavy case conveyors transporting filled cartons, shrink-wrapped bundles, or wooden pallets. The integrated tensioning system maintains proper belt grip under variable loads, while the robust frame withstands impact from forklift- or hand truck-loaded sections.
2. Automotive Parts Assembly Lines

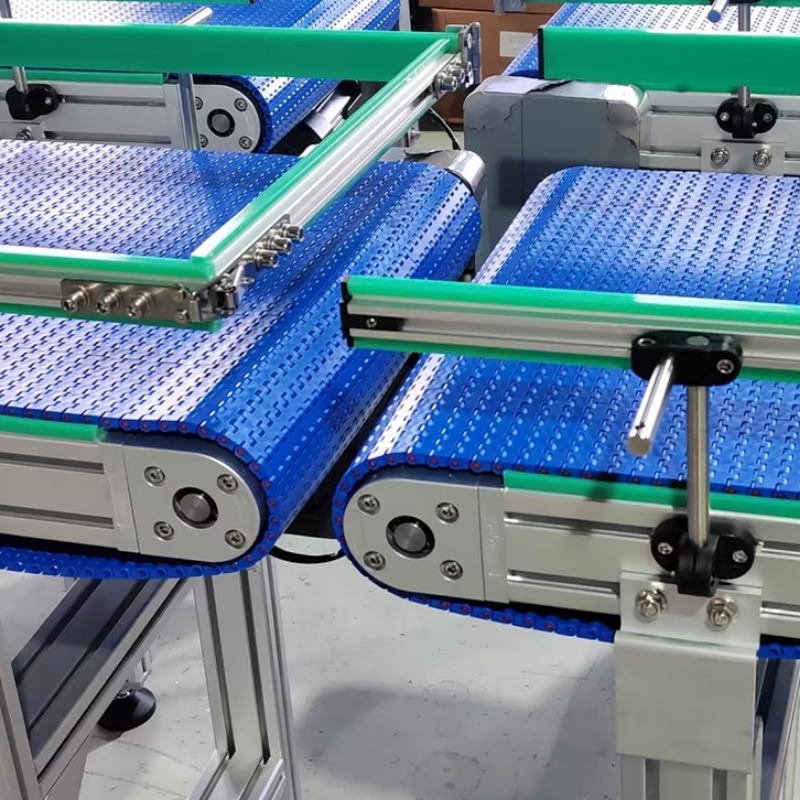

In engine, transmission, and axle assembly lines, the 4080 sections drive and guide heavy-duty flat belts or modular plastic chains carrying steel fixtures or cast components. The T-slotted profiles allow mounting of part presence sensors, pushers, and lift gates. Tail section tracking adjustment ensures precise belt alignment even after long operating hours.
3. Automated Warehouse & Sortation Systems
For high-speed parcel sorters and telescopic belt conveyors, the 4080 head and tail sections provide stable, low-maintenance drive and idler ends. Sealed bearings resist dust accumulation from cardboard particles. Optional crown-faced drive pulleys improve belt tracking. The modular design allows quick replacement of damaged sections during peak season shifts.
