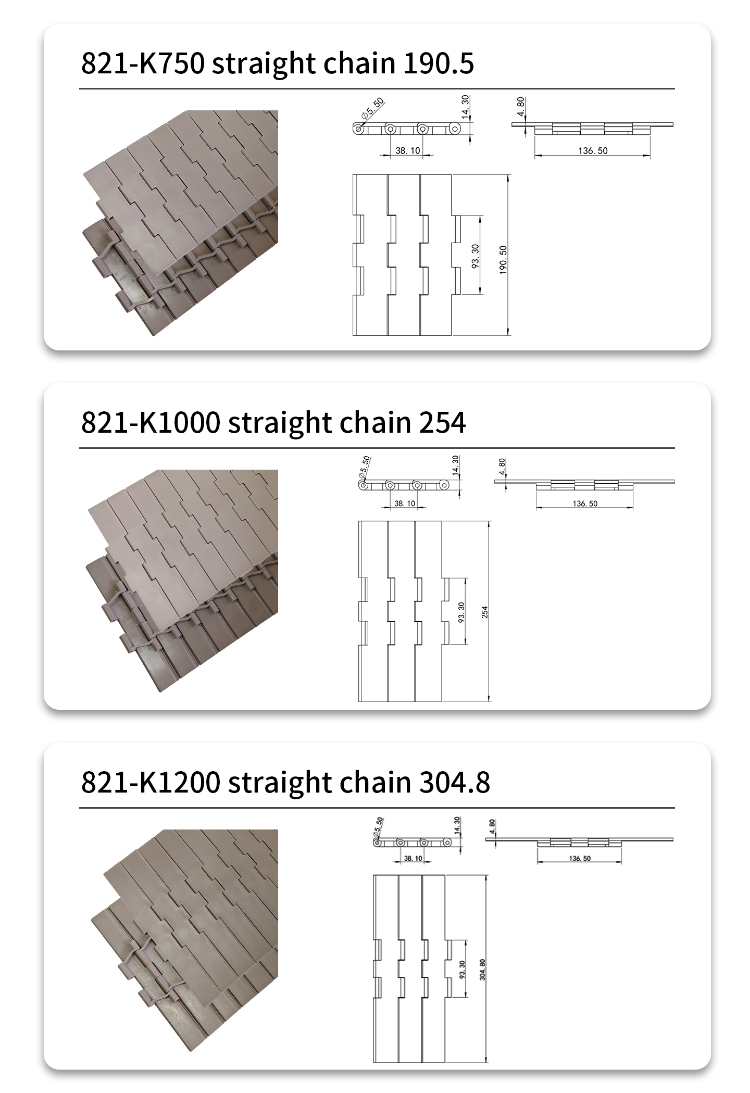

1. Straight-Line Efficiency & Stability

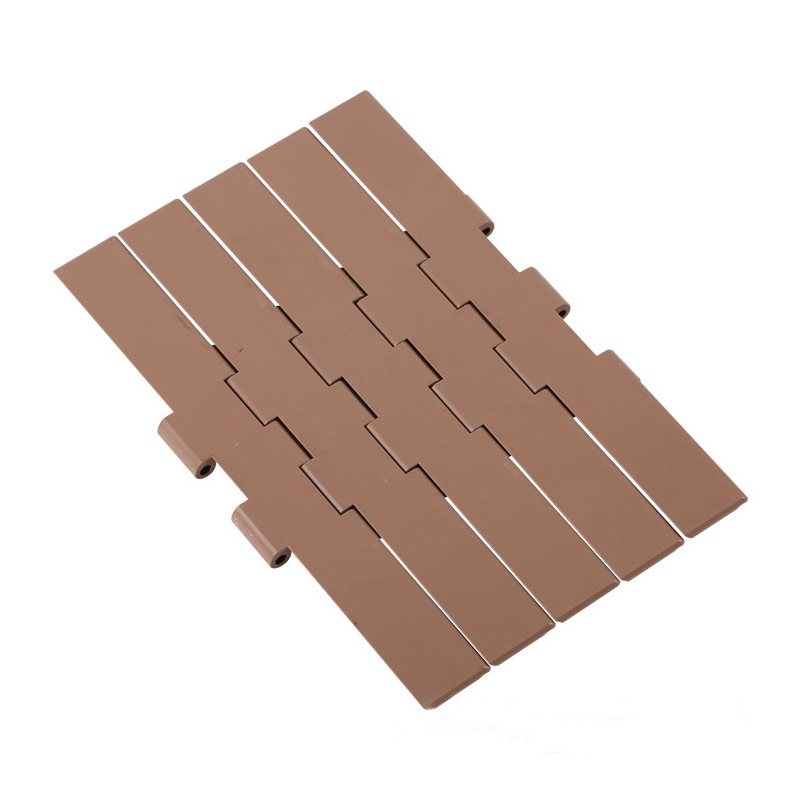

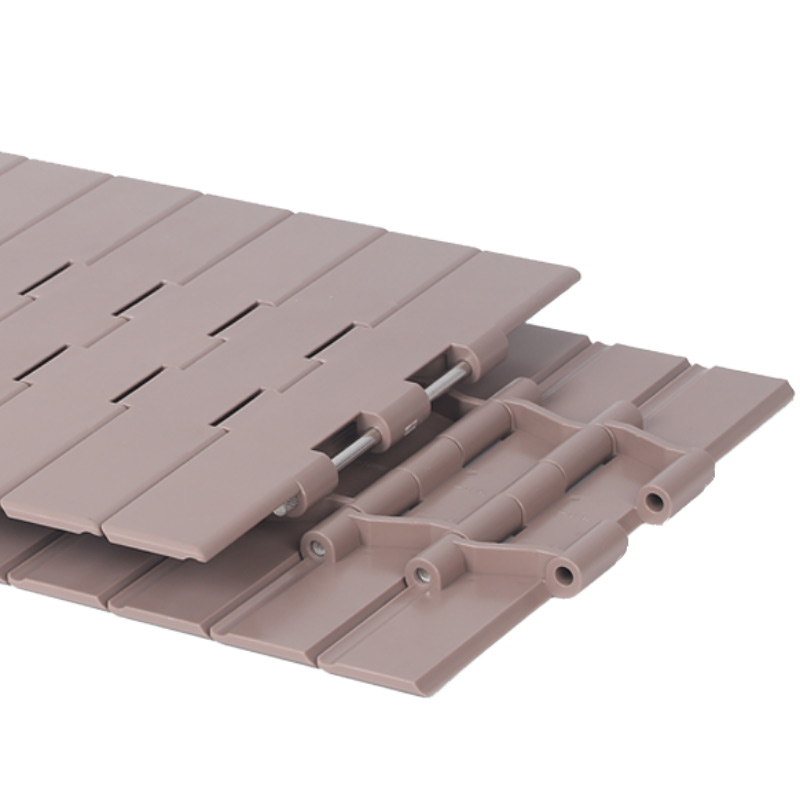

The 821 chain plate is optimized for straight running applications, maintaining consistent tension and tracking without lateral movement. The flat, wide surface provides stable support for bottles, cartons, and cases, preventing tipping or skewing at transfer points. Its low-friction material reduces drive power consumption and wear on wear strips, extending system life.

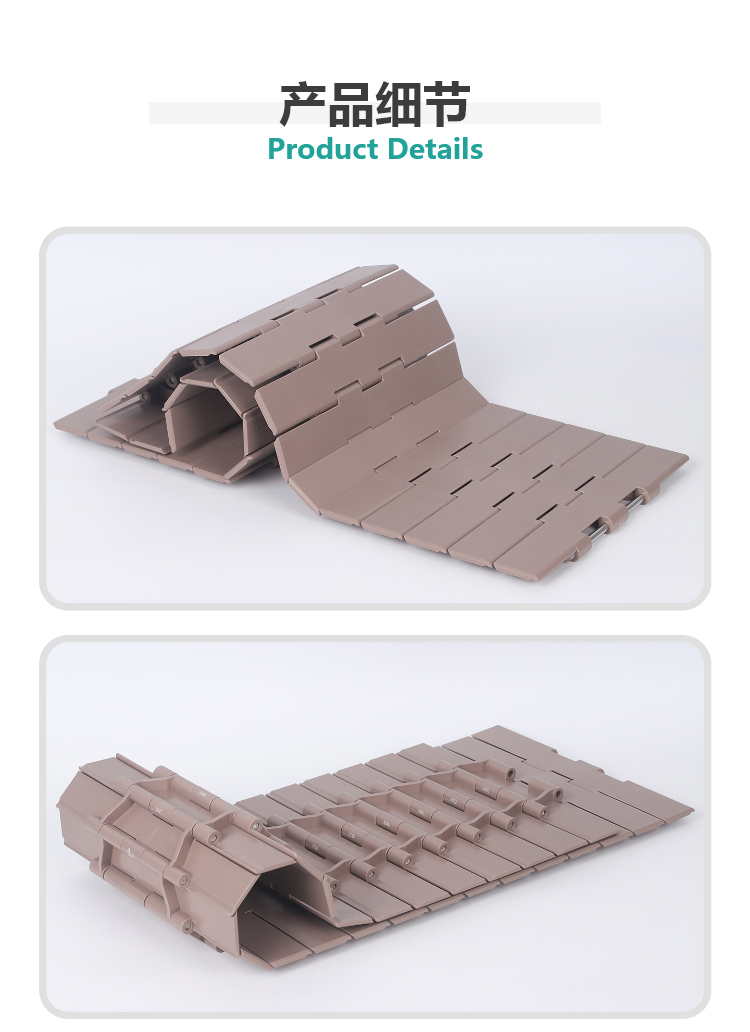

2. Modular & Easy to Maintain

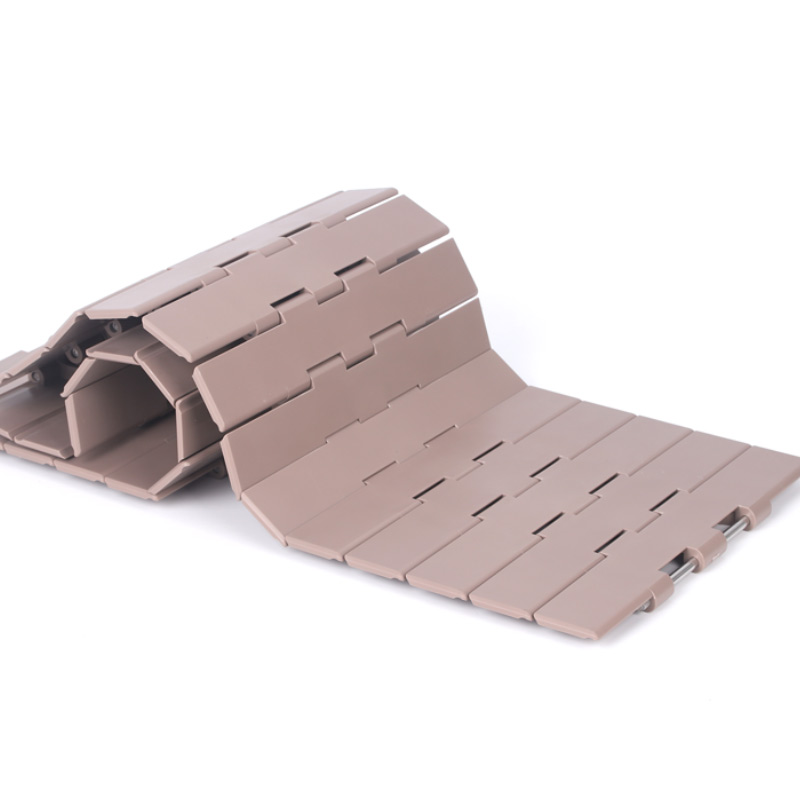

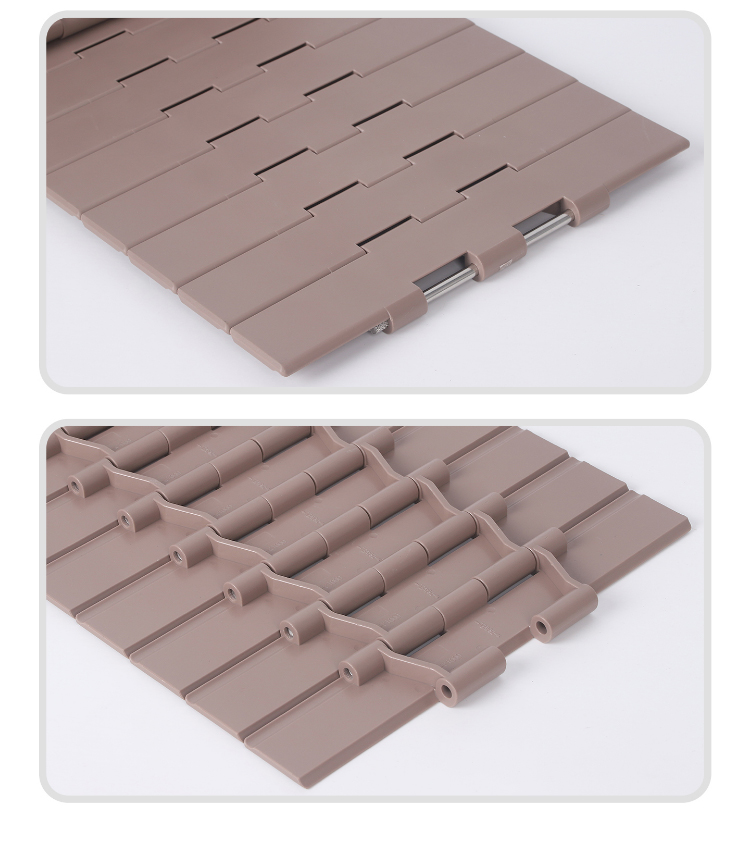

Individual modules are linked by stainless steel or plastic hinge rods, allowing damaged sections to be replaced in minutes without removing the entire belt. This modular design reduces downtime and spare parts costs. The belt can be cut to any width using standard tools, and edge modules are available to create custom widths for specific product dimensions.
3. Lubrication-Free & Hygienic
The acetal or polypropylene material runs dry, eliminating oil or grease contamination risks – critical for food, beverage, and pharmaceutical lines. The open hinge design allows liquid drainage and debris fall-through, preventing product buildup. The belt withstands frequent washdowns with hot water or mild detergents and is compatible with FDA and EU food contact standards.
Product Uses

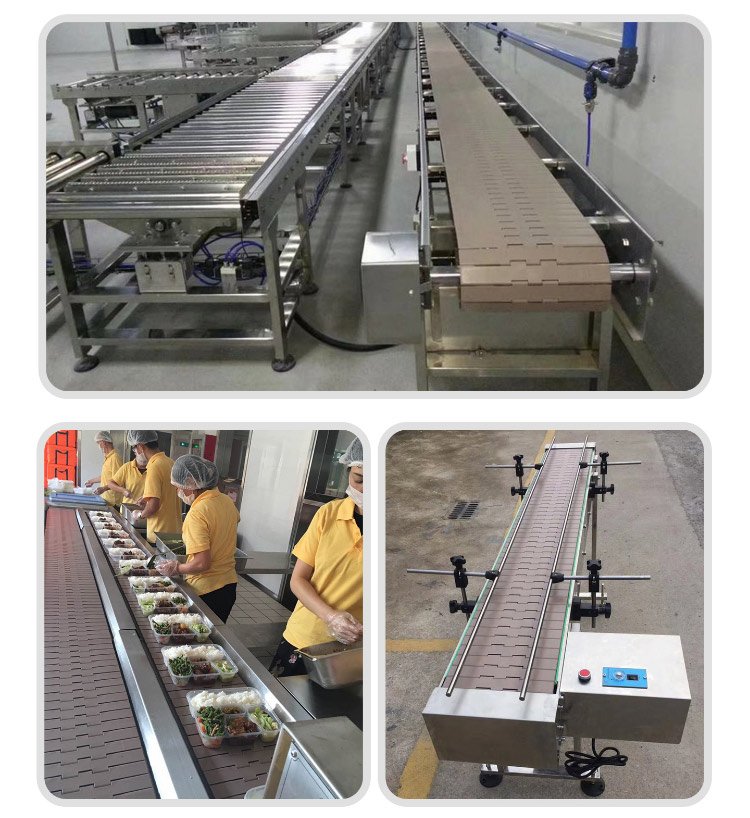

1. Beverage Can & Bottle Conveying

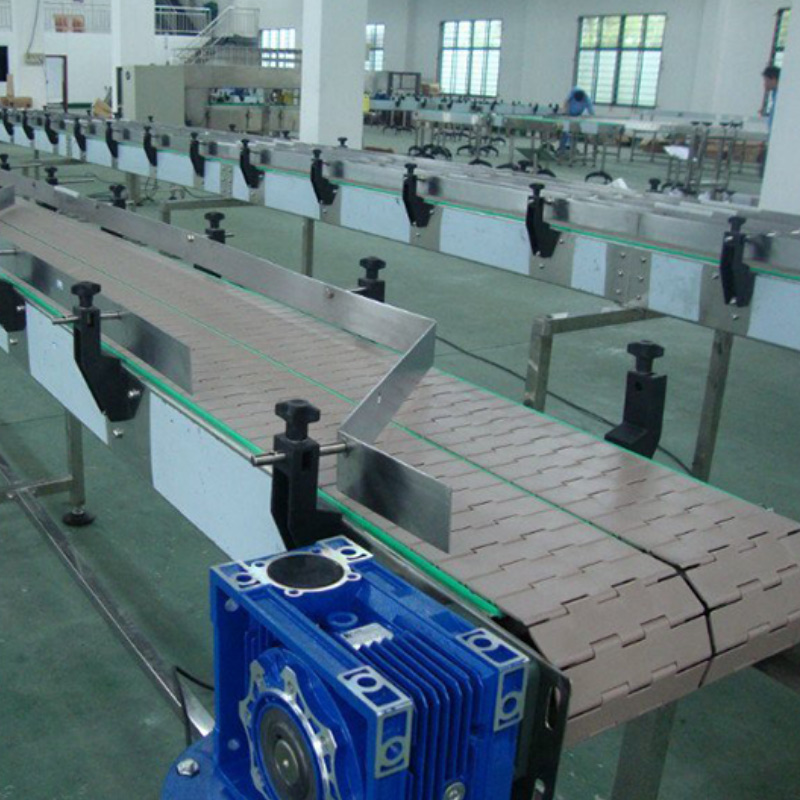

The 821 chain plate is widely used in filling, rinsing, labeling, and packing lines for PET bottles, glass bottles, and aluminum cans. Its flat surface maintains container stability at high speeds (up to 60 m/min). The open hinge drains spilled liquids away from the belt surface, reducing slip and bacterial growth. Single-file or mass flow configurations are both supported.
2. Case & Carton Transport in Warehousing
In distribution centers and packaging halls, the 821 chain plate moves corrugated cases, display trays, and shrink-wrapped bundles between palletizers, stretch wrappers, and truck loaders. The wide belt accommodates mixed case sizes without requiring change parts. Its low-noise operation benefits office-adjacent facilities, while the modular design allows quick reconfiguration for seasonal product changes.

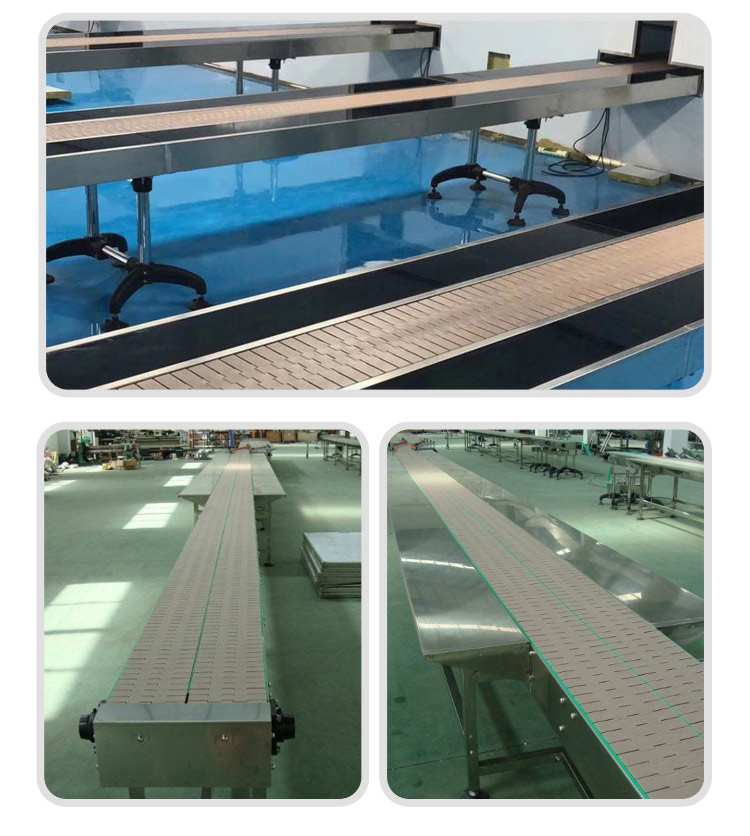

3. General Manufacturing Assembly Lines
The 821 chain plate transports plastic parts, metal stampings, electronic subassemblies, and automotive components through manual workstations or automated assembly cells. Its anti-static or conductive grades protect sensitive electronics. The belt can be fitted with cleats, sidewalls, or guide rails for incline conveying or product separation. Easy cleaning supports lean manufacturing practices.
